Asrock A620M-HDV/M.2, AMD A620, !! TDP limit: 65W!!, AM5, DDR5, 90-MXBLL0-A0UAYZ

!!! TDP limit: 65W (<>W)) !!!

Form factor µATX
Plinth AMD AM5
Chipset AMD A620
CPU Compatibility Ryzen 7000
RAM 2x DDR5 DIMM, dual PC5-44800U/DDR5-5600 (OC), max. 64GB (UDIMM)
Expansion slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 3.0 x2/SATA, 2280/2260), 1x M.2/E-Key (PCIe, 2230)

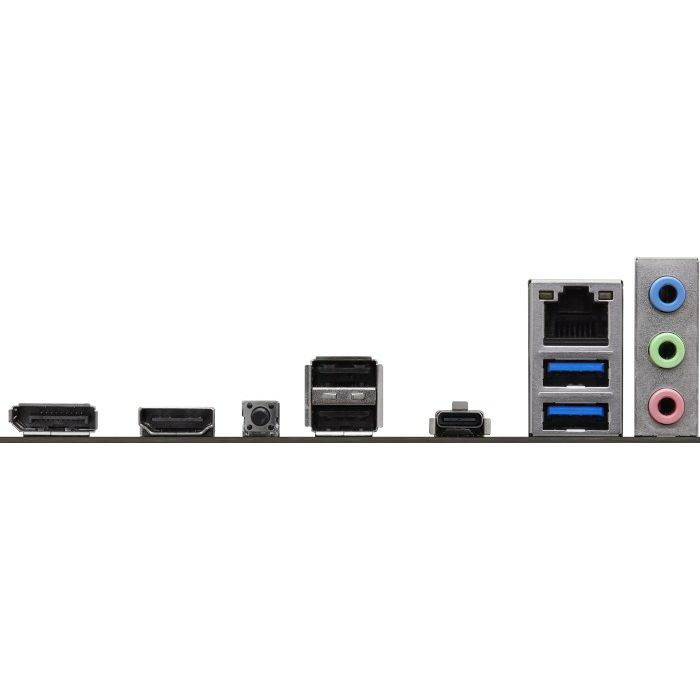

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.0 (5Gb/s), 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 2x mounting hole for antenna connection (RP-SMA)
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 2x SATA 6Gb/s (A620), 1x TPM header, 1x speaker header
Header Cooling 1x CPU fan 4-pin, 3x fan/pump 4-pin
Header Lighting N/A
Buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/10 (A620)
Multi-GPU N/A
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 5 virtual phases (4+1), 5 real phases (4+1), PWM controller: RT3674AE (max. 5 phases)
MOSFETs CPU 4x 50A SiC634
MOSFETs SoC 2x 60A DEC3908X/DEC3906X
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), Onboard TPM 2.0 support (AMD fTPM)
