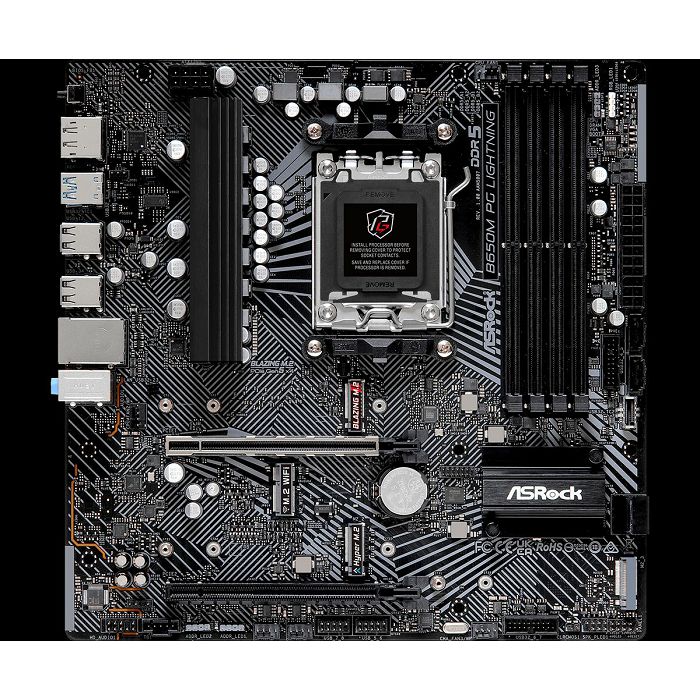

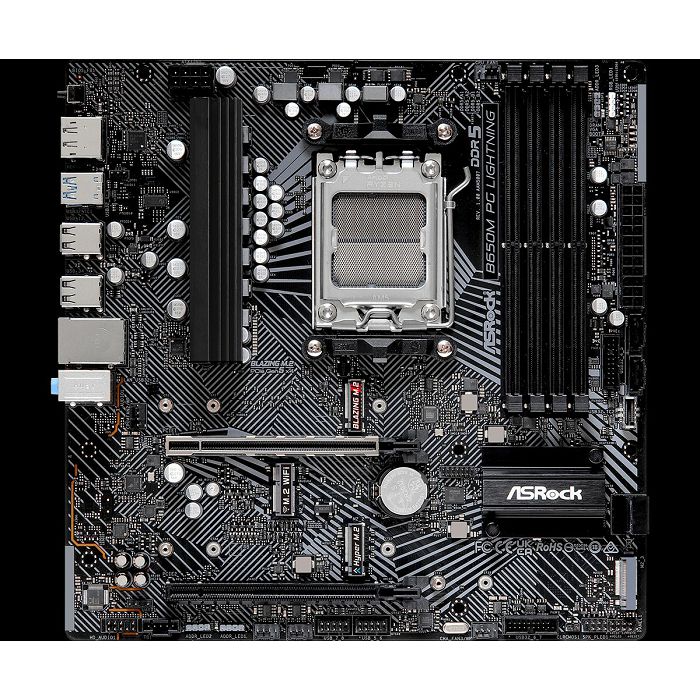

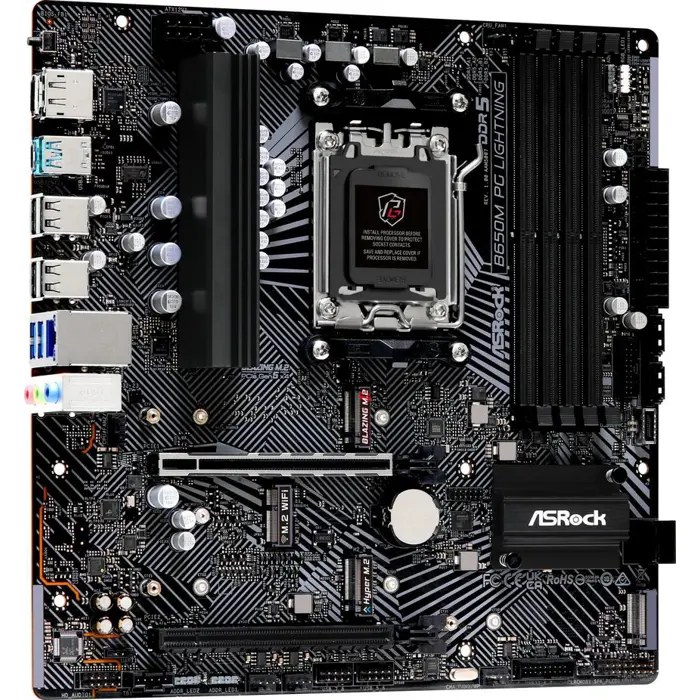

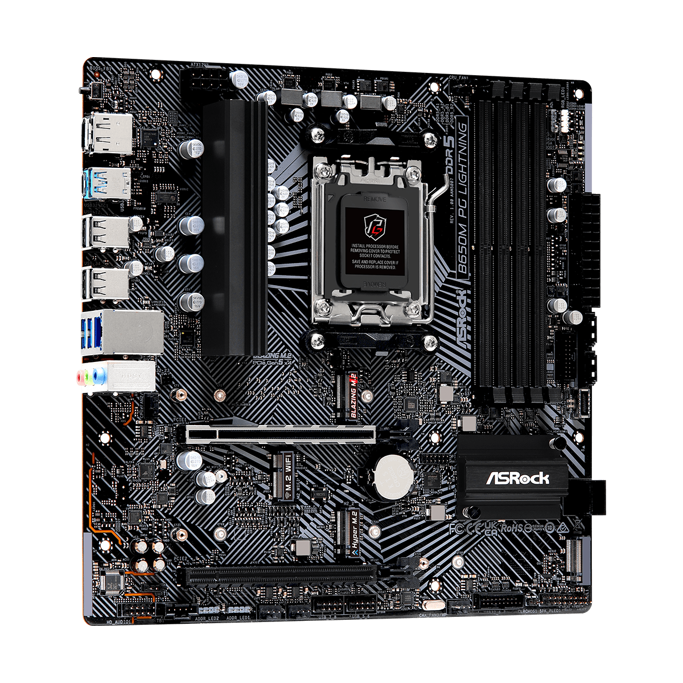

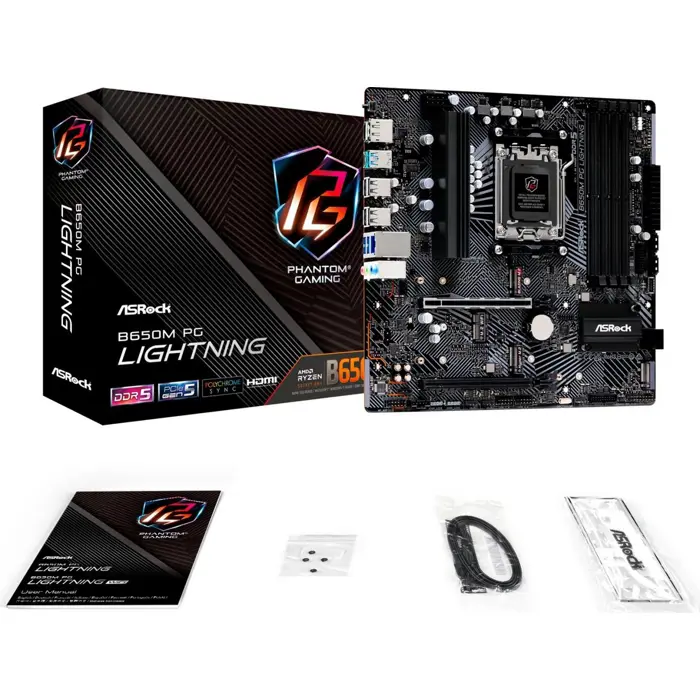

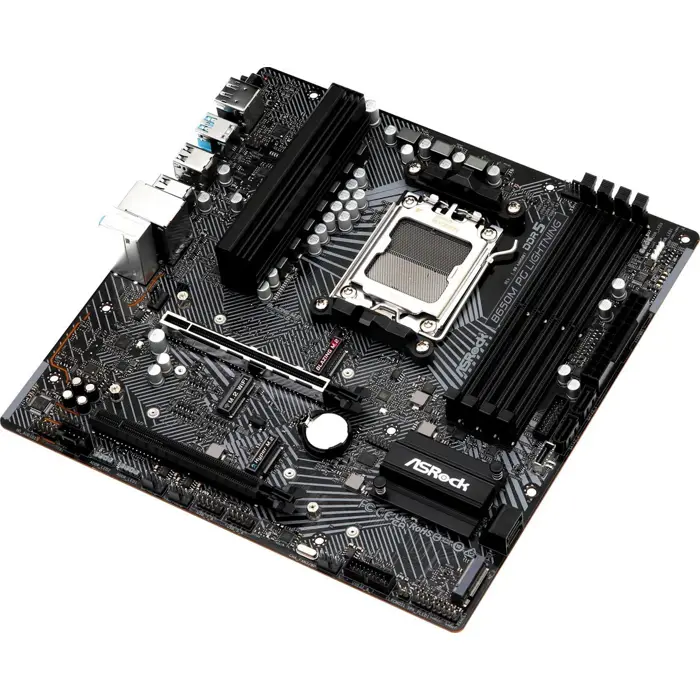

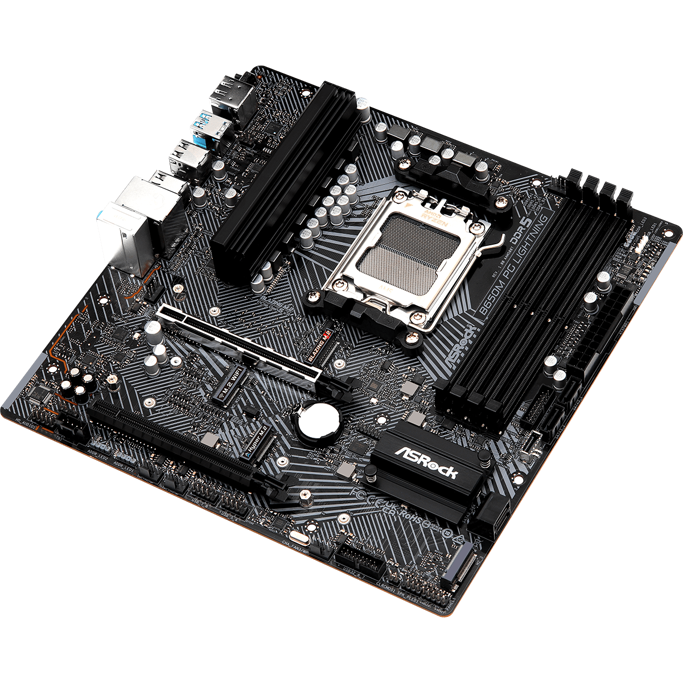

Asrock B650M PG LIGHTNING, AM5, DDR5, 90-MXBMV0-A0UAYZ

shape factor µATX
Socket AMD AM5
chipset AMD B650
CPU-Compatibility Ryzen 8000G, Ryzen 7000, TDP-Limit: 120W (Manufacturer-list)
RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 192GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x2, 2280/2260), 1x M.2/E-Key (PCIe/Intel CNVi, 2230)

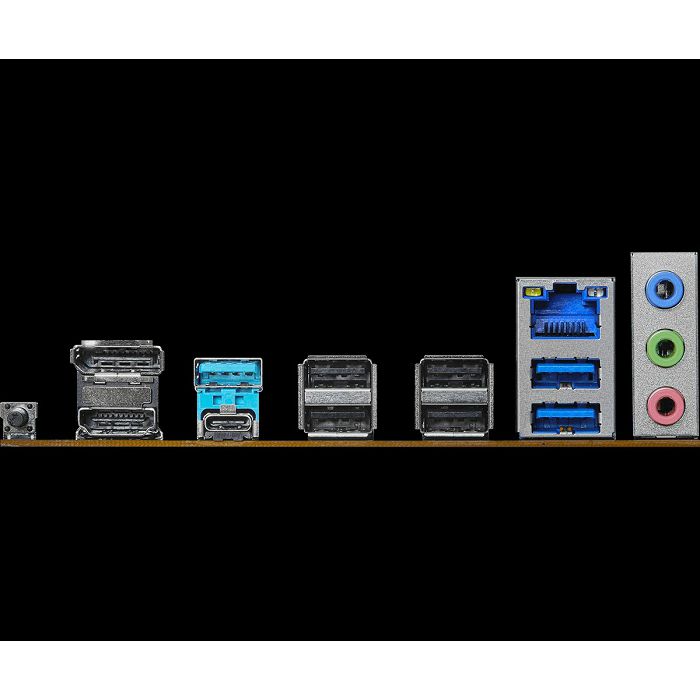

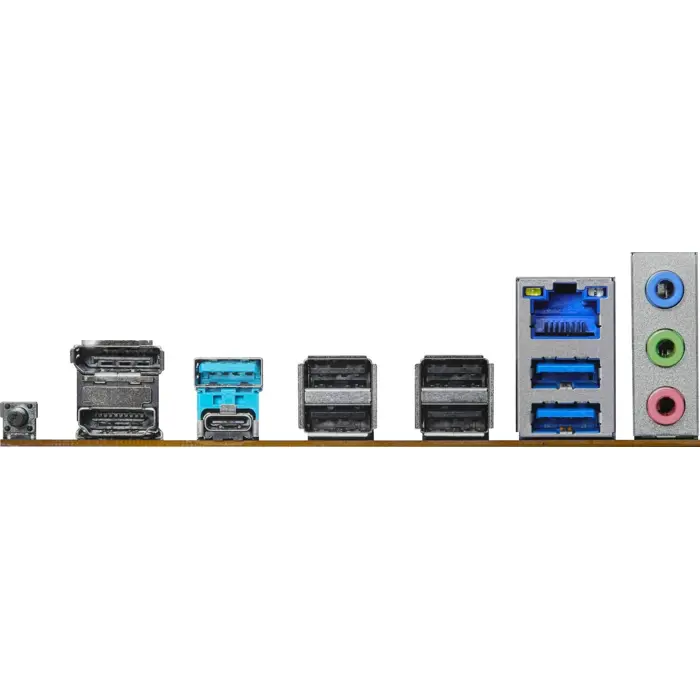

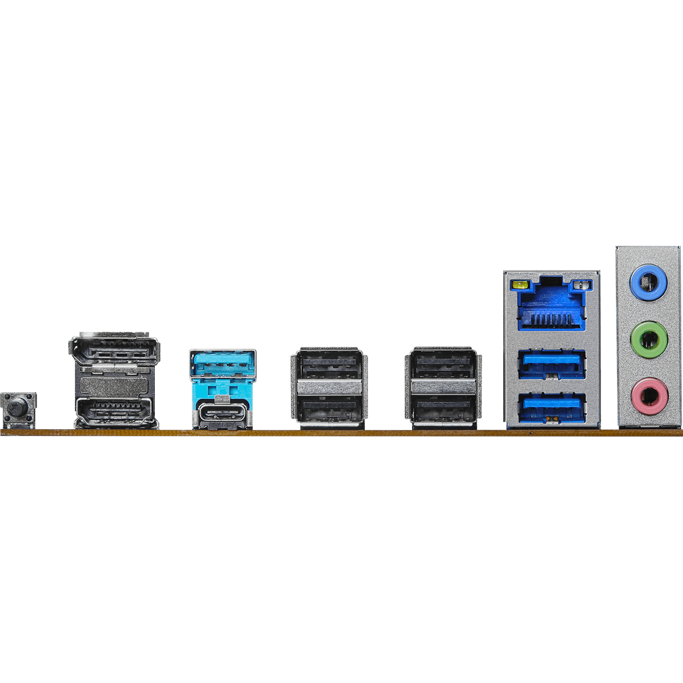

external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 2x Befestigungsloch for antenna connector (RP-SMA)
Internal connectors 1x USB-C 3.0 Key-A Header (5Gb/s), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x Speaker-Header
Header Cooling 1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 3x fan/pump 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level 0/1/10 (B650)
Multi-GPU AMD 2-Way-CrossFireX (x16/x4)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 8 virtual phases (6+2), 4 real phases (3+1), PWM-Controller: RT3674AE (max 5 phases)
MOSFETs CPU (VCORE) 6x 50A SiC634
MOSFETs SoC (VCCGT) 2x 50A SiC634
MOSFETs AUX (VCCAUX) 1x
Lighting not available
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), onboard TPM 2.0 support (AMD fTPM)
