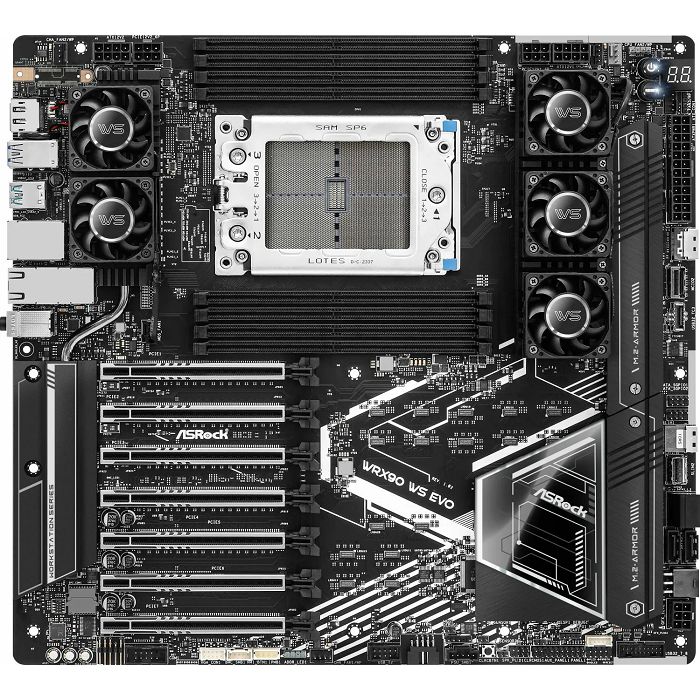

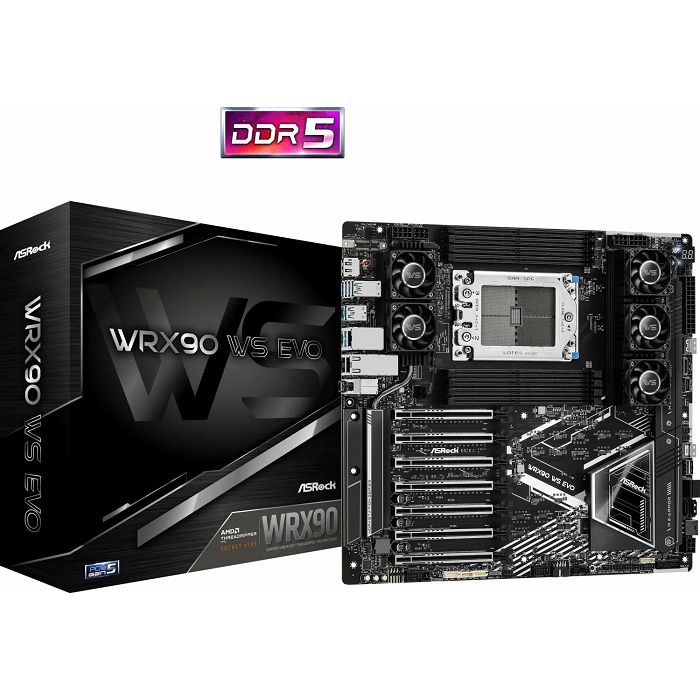

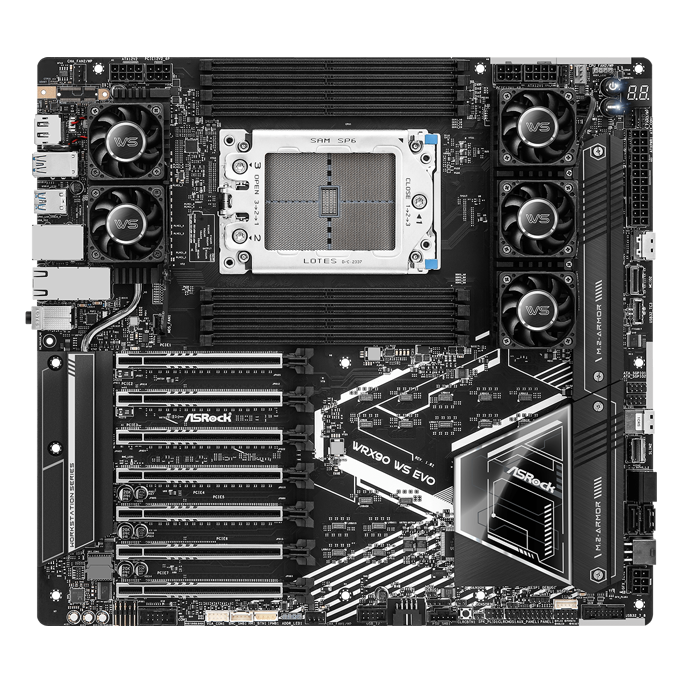

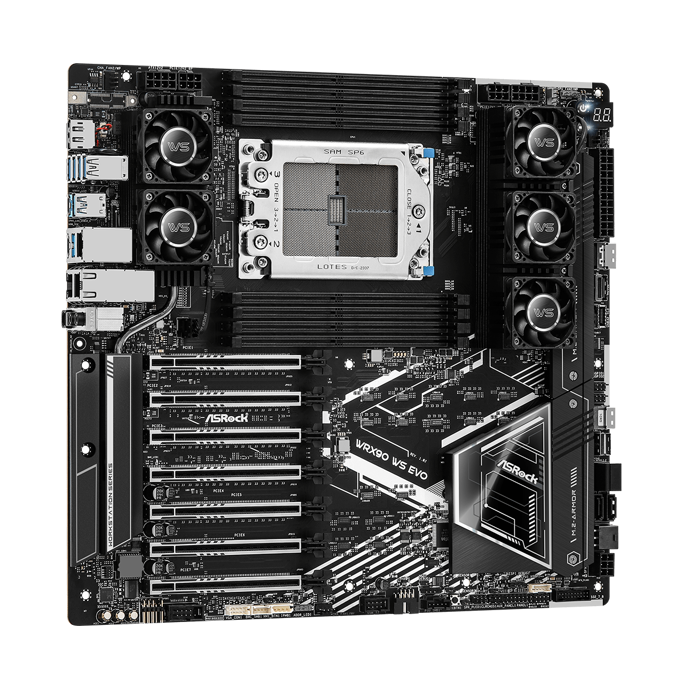

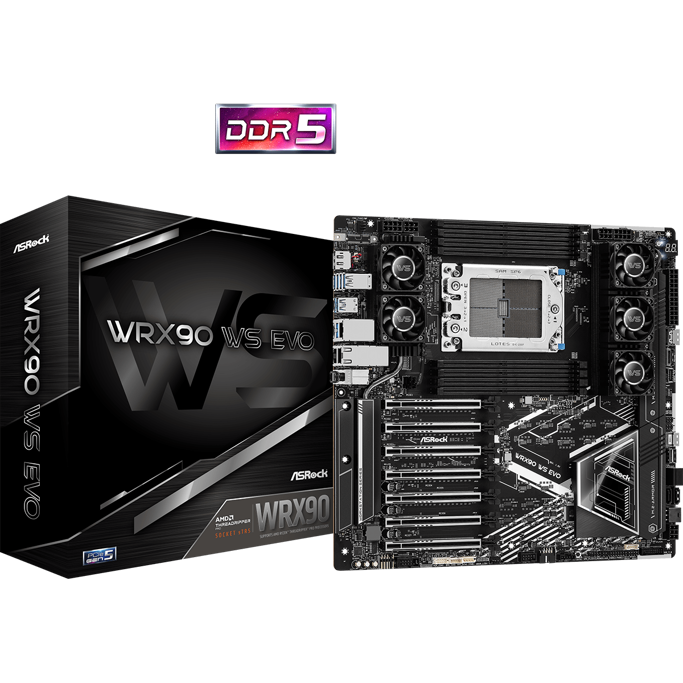

ASRock TRX90 WS EVO, AMD sTR5, AMD WRX90, 90-MXBMH0-A0UAYZ

Form factor E-ATX (SSI EEB), 305x330mm, 12"x13"
Plinth AMD sTR5
Chipset AMD WRX90
RAM 8x DDR5 DIMM, octa PC5-60800R/DDR5-7600 (OC), max. 2TB (RDIMM), max. 2TB (RDIMM-3DS)
Expansion Slots 7x PCIe 5.0 x16 (6x x16, 1x x8), 1x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260), 2x MCIO SFF-TA-1016 4i (PCIe 5.0 x4), 1x Slim SAS SFF-8654 (PCIe 4.0 x4/SATA)

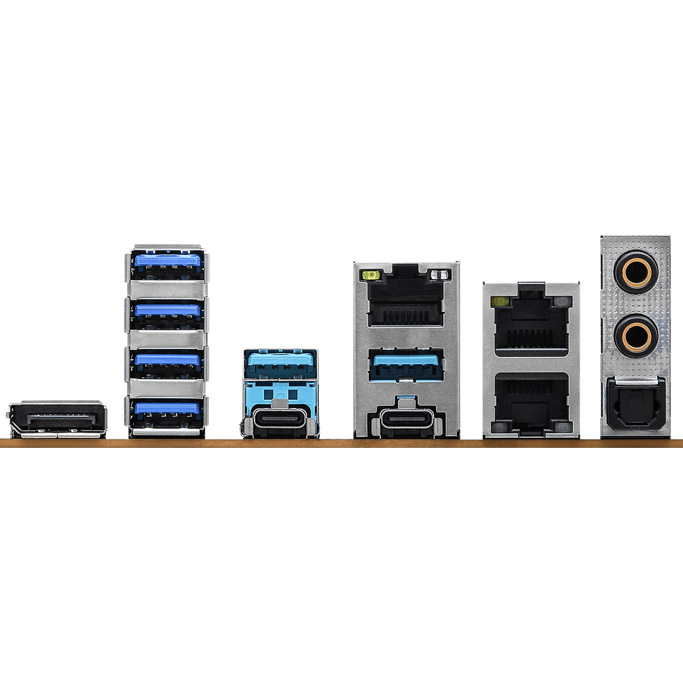

External connections 1x DisplayPort 1.1a (AST2600), 2x USB4 (40Gb/s, ASMedia ASM4242), 4x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 2x 10GBase-T (Intel X710-AT2), 2x jack, 1x Toslink, 1x management port (RJ-45)
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (WRX90, via Slim SAS SFF-8654), 1x serial, 1x BMC header, 1x IPMB header, 1x PSU SMB header, 1x VGA header (AST2600), 1x speaker header, 2x SGPIO header, 1x NMI header
Header Cooling 1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 3x fan/pump 4-pin, 2x thermal sensor
Header Lighting 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
Buttons/Switches Power button (internal), Retry button (internal), Clear CMOS button (internal)
Audio 7.1 (Realtek ALC1220)
Graphic ASPEED AST2600 - Onboard
Wireless N/A
RAID Level 0/1/10 (WRX90)
Power connections 1x 24-pin ATX (PSU1), 2x 8-pin EPS12V, 2x 6-pin PCIe, 2x 6-pin PCIe-in
VRM 18+3+3
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (segment display), 2x M.2 passive coolers, ECC support, VRM fan, support for 2 power supplies, onboard TPM 2.0 support (AMD fTPM, see additional manufacturer's link)
