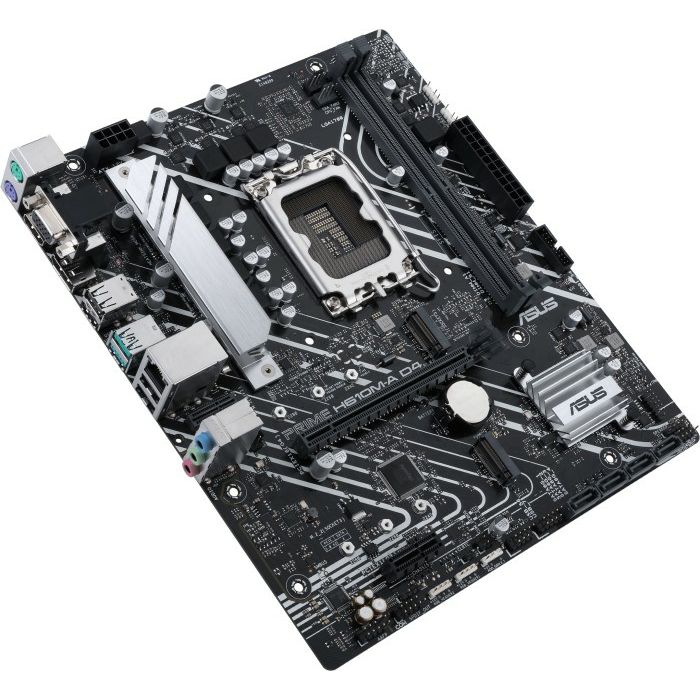

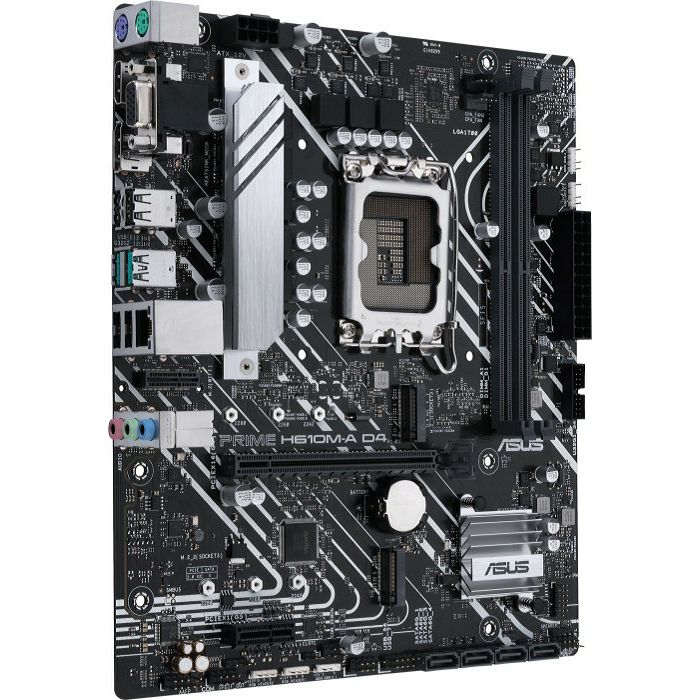

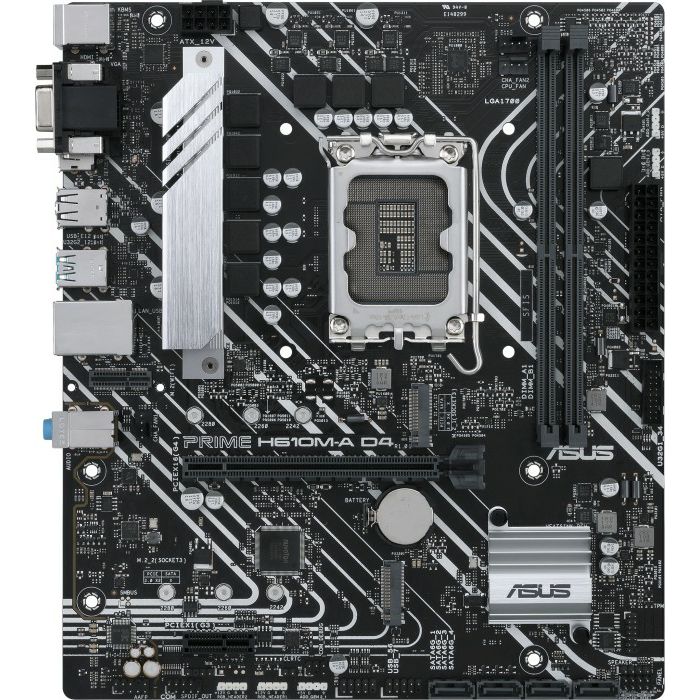

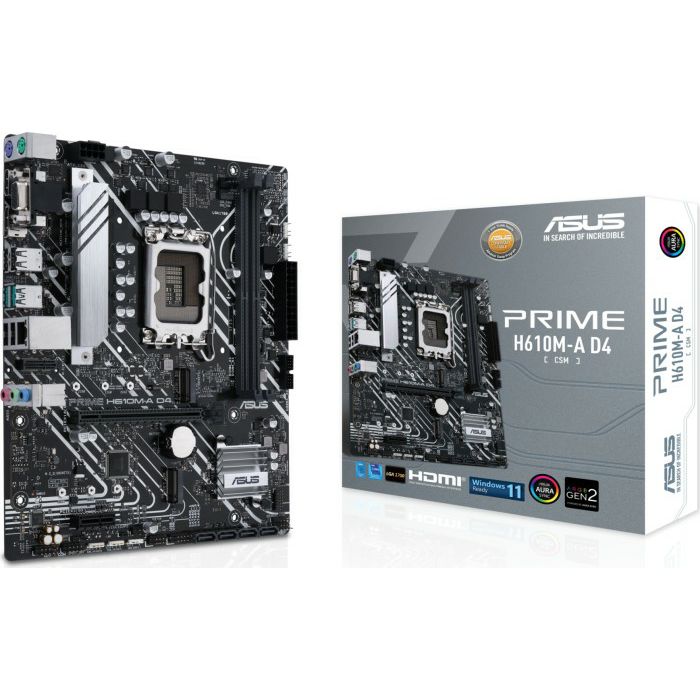

Asus PRIME H610M-A D4-CSM, DDR4, intel H610, s.1700, 90MB19P0-M0EAYC

shape factor µATX
Socket Intel 1700
chipset Intel H610
CPU-Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR4 DIMM, dual PC4-25600U/?DDR4-3200, max. 64GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x2, 2280/?2260/?2242), 1x M.2/?E-Key (PCIe/?Intel CNVi, 2230)

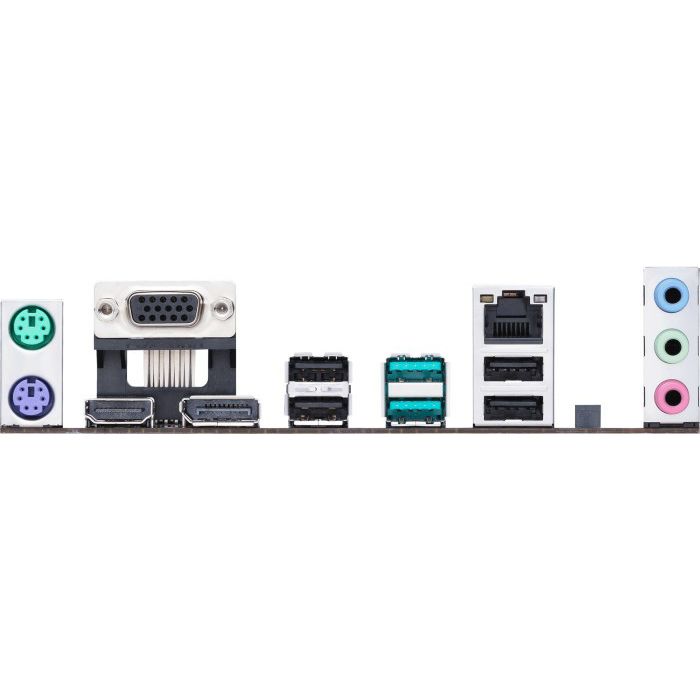

external connectors 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.1 (10Gb/?s, H610), 4x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Intel I219-V), 3x jack, 1x PS/?2 keyboard, 1x PS/?2 mouse, 2x Befestigungsloch for antenna connector (RP-SMA)
Internal connectors 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0, H610), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (H610), 1x serial, 1x TPM-Header, 1x S/?PDIF-Header, 1x Speaker-Header, 1x COM Debug-Header
Header Cooling 1x CPU fan 4-Pin, 2x fan 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
buttons/Switches not available
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level not available
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 7 virtual phases (6+1), 7 real phases (6+1), PWM-Controller: ASP2100 (RT3628AE, max. 9 phases)
MOSFETs CPU (VCORE) 6x 64A SiRA14BDP/?SiRA12BDP
MOSFETs SoC (VCCGT) 1x 64A SiRA14BDP/?2x SiRA12BDP
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
