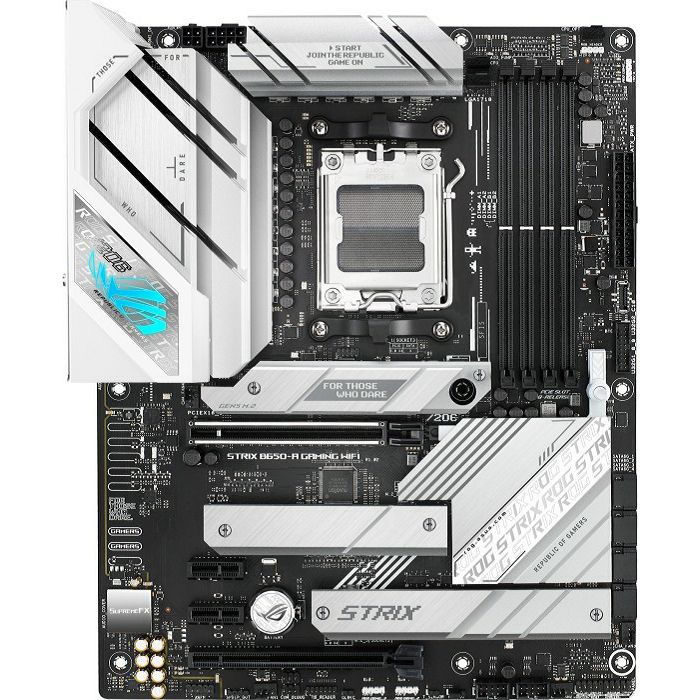

ASUS ROG Strix B650-A Gaming WIFI, AM5, AMD B650, 90MB1BP0-M0EAY0

Shape factor ATX
Socket AMD AM5
chipset AMD B650
CPU-Compatibility Ryzen 7000, without TDP limitation (Manufacturer-list)
RAM 4x DDR5 DIMM, dual PC5-51200U/?DDR5-6400 (OC), max. 192GB (UDIMM)
Extension slots 2x PCIe 4.0 x16 (1x x16, 1x x4), 2x PCIe 4.0 x1, 1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (PCIe, 2230, occupied with WiFi+BT module)

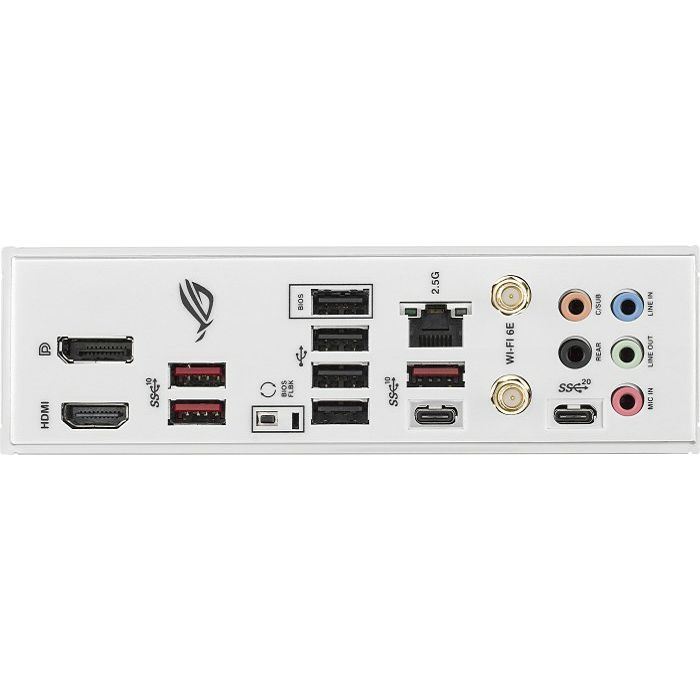

external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-C 3.1 (10Gb/?s), 3x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Intel I225-V), 5x jack, 2x antenna connector (RP-SMA)
Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x Chassis Intrusion-Header, 1x Thunderbolt-Header 13-Pin (14-1), 1x COM Debug-Header, 1x S/?PDIF-Header, 1x Speaker-Header
Header Cooling 2x CPU fan 4-Pin, 4x fan 4-Pin, 1x AIO-pump 4-Pin, 1x Thermal-sensor
Header Lighting 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC4080, ASUS SupremeFX), AMP (Savitech SV3H712), DTS Sound Unbound
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2), Bluetooth 5.2
RAID level 0/?1/?10 (B650)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM 14 virtual phases (12+2), 8 real phases (6+2), PWM-Controller: not specified
MOSFETs CPU 12x 60A SiC643
MOSFETs SoC 2x 60A SiC643
Lighting RGB, 1 zone (I/?O cover)
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), 3x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (AMD fTPM), ECC-support
