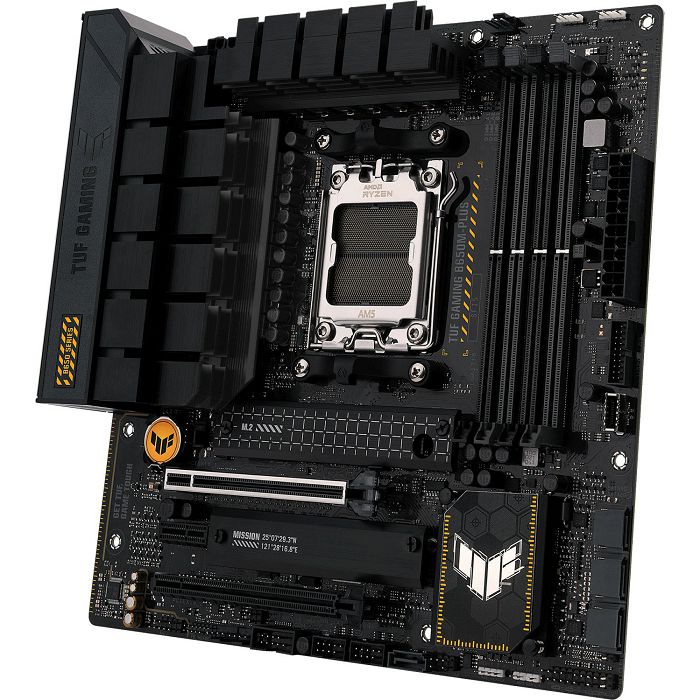

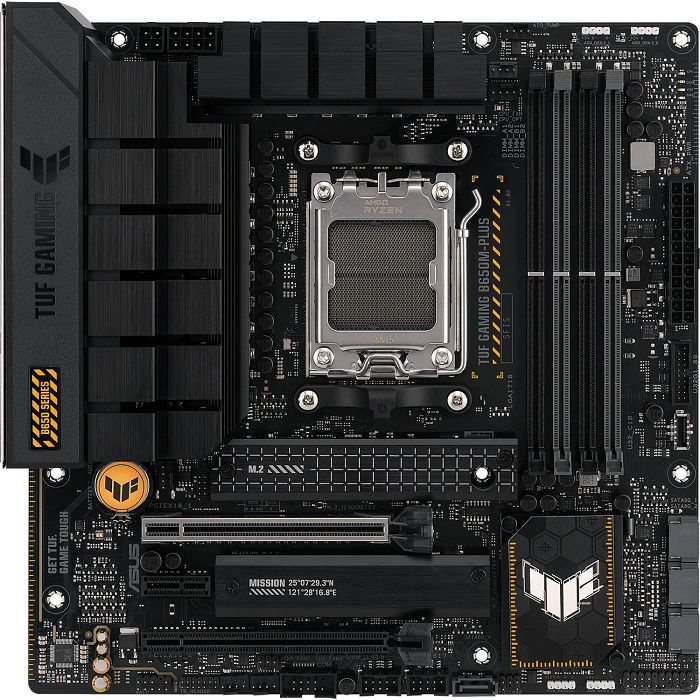

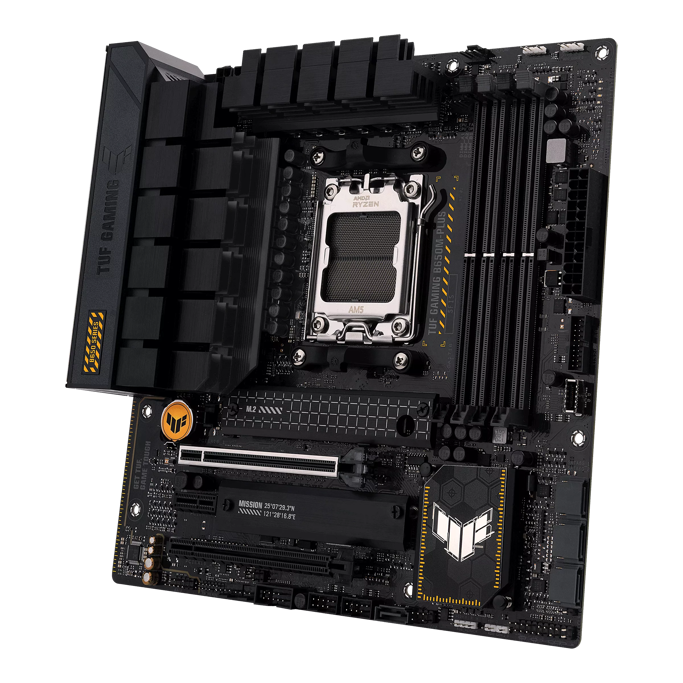

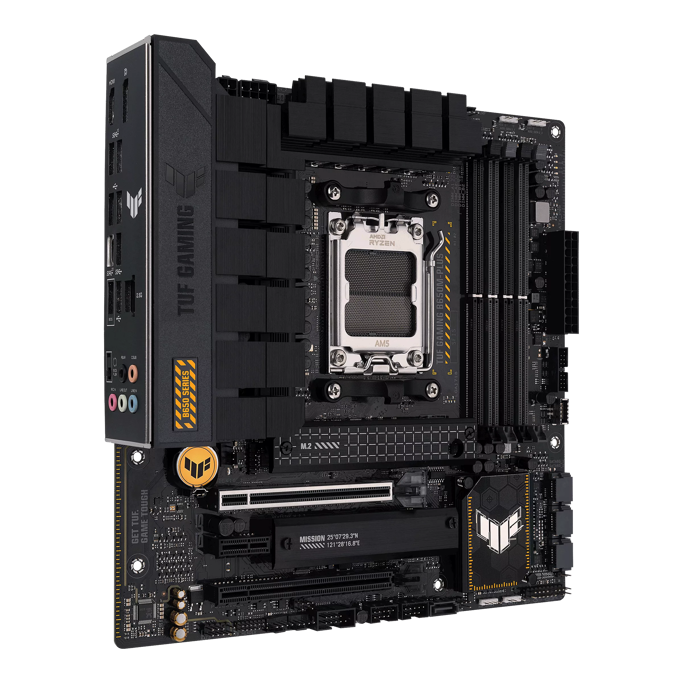

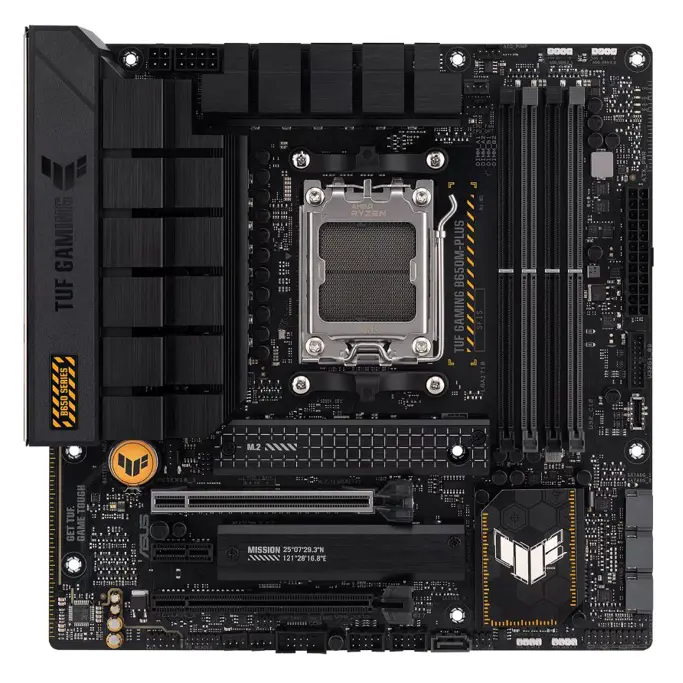

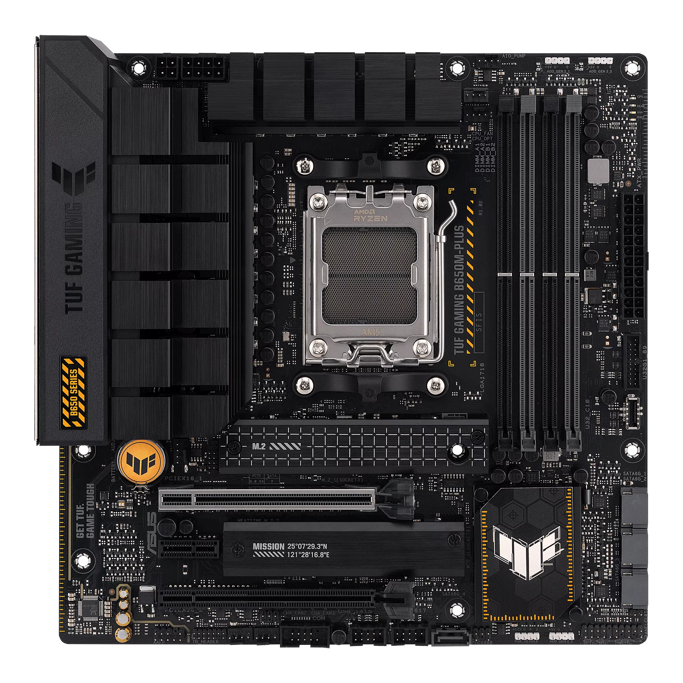

ASUS TUF Gaming B650M-Plus, AM5, AMD B650, DDR5, 90MB1BG0-M0EAY0

Shape factor µATX
Socket AMD AM5
chipset AMD B650
CPU-Compatibility Ryzen 7000, without TDP limitation (Manufacturer-list)
RAM 4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max. 128GB (UDIMM)
Extension slots 2x PCIe 4.0 x16 (1x x16, 1x x4), 1x PCIe 4.0 x1, 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242)

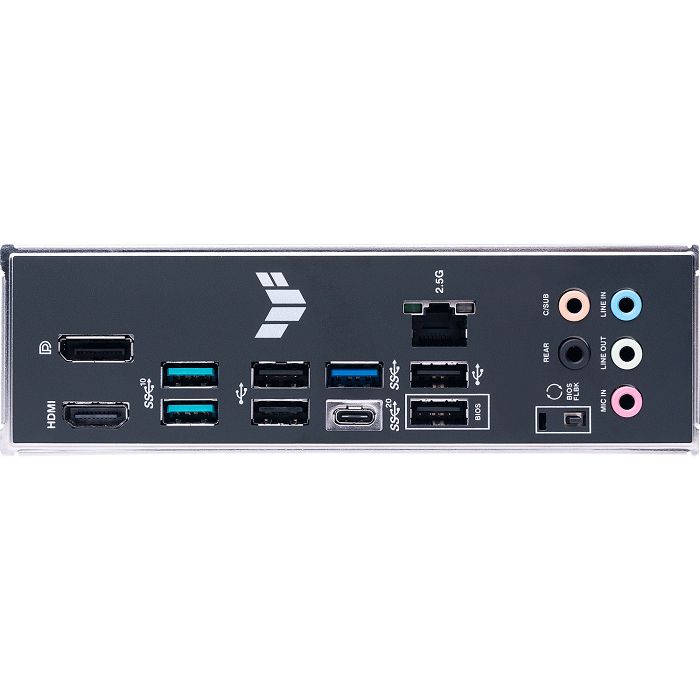

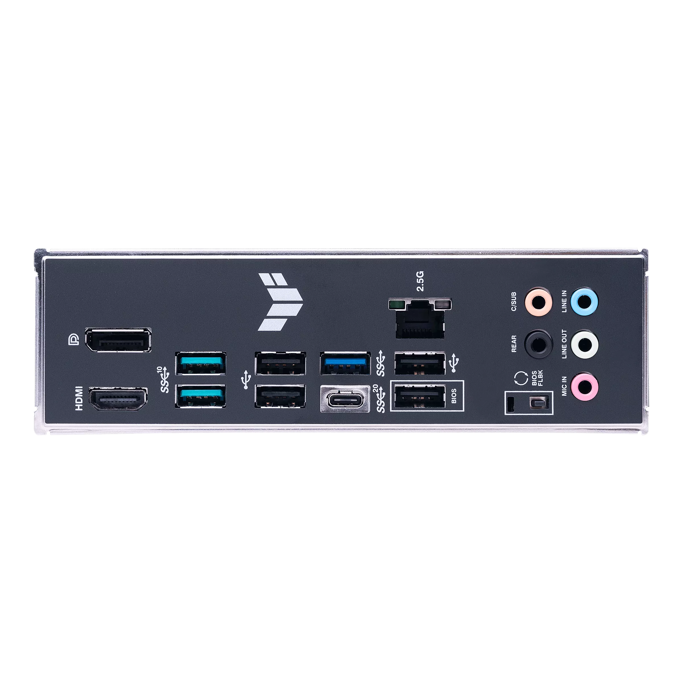

external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 2x USB-A 3.1 (10Gb/s), 1x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 5x jack
Internal connectors 1x USB-C 3.0 Key-A Header (5Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x serial, 1x TPM-Header, 1x Chassis Intrusion-Header, 1x Thunderbolt-Header 13-Pin (14-1)
Header Cooling 2x CPU fan 4-Pin, 3x fan 4-Pin, 1x AIO-pump 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level 0/1/10 (B650)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM 14 virtual phases (12+2), 8 real phases (6+2), PWM-Controller: ASP2208
MOSFETs CPU 12x 60A AOZ5317
MOSFETs SoC 2x 60A AOZ5317
Lighting not available
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), 2x M.2-passive cooler, I/O-shield integrated, onboard TPM 2.0 support (AMD fTPM), ECC-support
