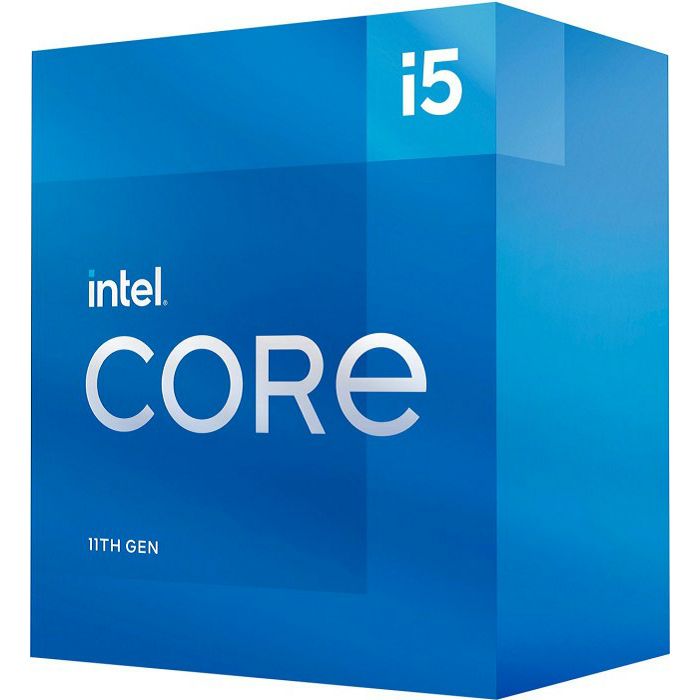

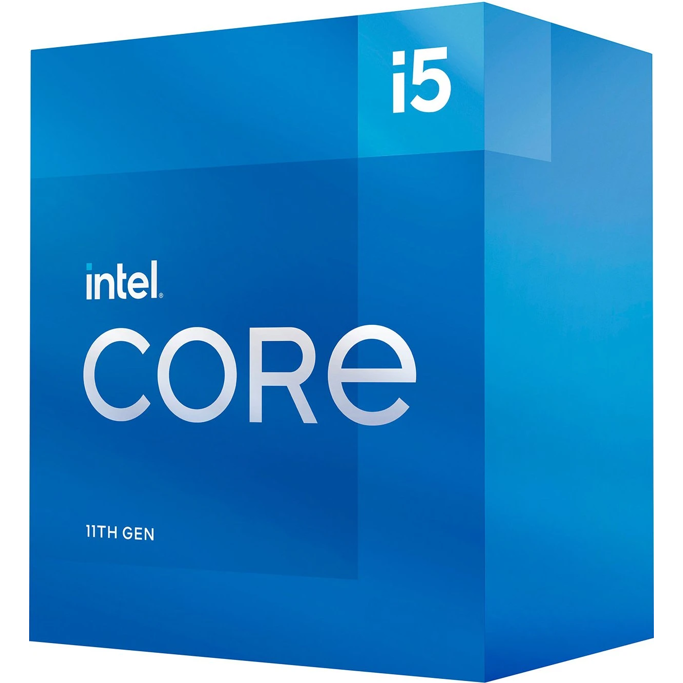

Intel Core i5-11400 2.6GHz LGA1200, BX8070811400

Socket 1200 (LGA)
Codename Rocket Lake-S
Graphics Intel UHD Graphics 730 (iGPU), 24EU/?192SP, 0.35-1.30GHz
TDP 65W
Cores 6
Threads 12
Base Clock 2.60GHz
Turbo Clock 4.40GHz
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC4-25600U (DDR4-3200)
ECC support no
Unlocked no
Remote management no
CPU-Features DL Boost, Turbo Boost 2.0 (4.40GHz), Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, IPT, GNA 2.0, AES-NI, Secure Key, OS Guard, XD bit, Boot Guard
chipset suitability B460, B560, H410 H470, H510, H570, Q470, W480, Z490, Z590

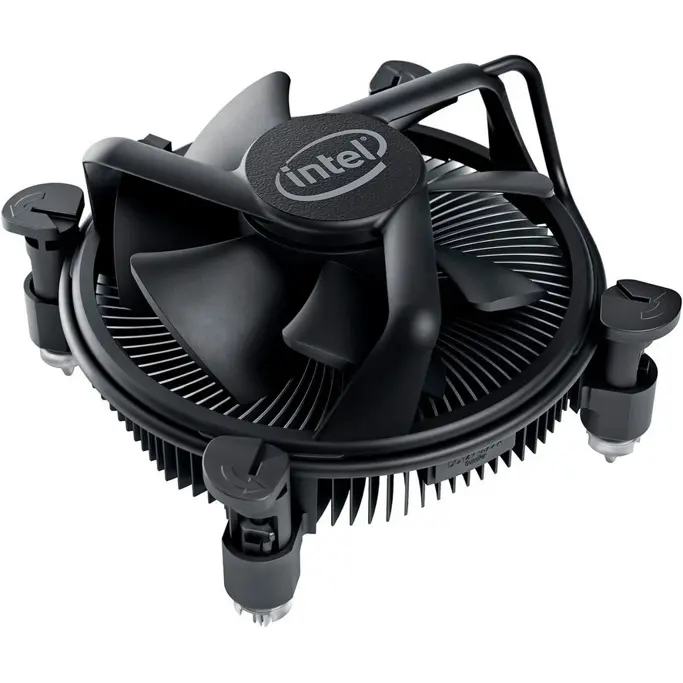

Scope of Delivery with CPU cooler (Intel PCG 2019C, 65W)
Segment desktop (Mainstream)
Architecture Cypress Cove
Manufacturing Process 14nm+++ (Intel)
Stepping B0
Launch 2021/?Q2 (2021-03-30)
L2 cache 3MB (6x 512kB)
L3 cache 12MB
chipset Interface DMI 3.0, 8GT/s (PCIe 3.0 x8)
PCIe Lanes 20x PCIe 4.0
Memory max. 128GB
Memory bandwidth 50GB/?s
Scalability 1 socket
Max Temperature 100°C
iGPU-Units 24EU
iGPU-Shader 192
iGPU-Clock 0.35-1.30GHz
iGPU-Architecture Gen12 Xe
iGPU-Codename Rocket Lake GT1
iGPU Interface HDMI 2.0b (4096x2160@60Hz), DisplayPort 1.4a (5120x3200@60Hz), eDP (5120x3200@60Hz)
iGPU processing Power 0.50 TFLOPS (FP32)
iGPU-Memory max. 64GB
iGPU-Features DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0, Quick Sync Video, InTru 3D, clear Video HD, 3x display support, H.265 encode/?decode, VP9 encode/?decode, AV1 decode, HDCP 2.3
