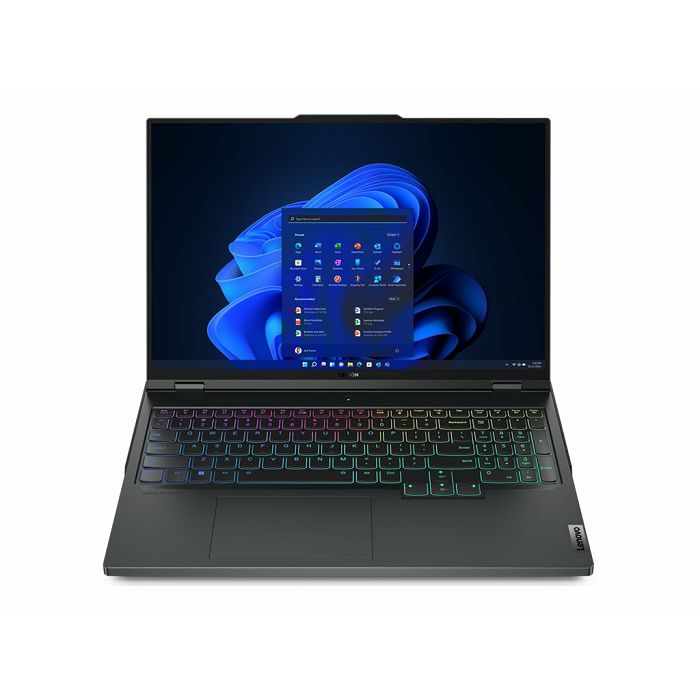

Lenovo Legion 7 Pro 16ARX8H 16" WQXGA , Ryzen 9 7945HX, 32GB, RTX4090, 1TB NVMe, DOS, 82WS001JSC

Processor
AMD Ryzen™ 9 7945HX (16C / 32T, 2.5 / 5.4GHz, 16MB L2 / 64MB L3)
Graphics
NVIDIA® GeForce RTX™ 4090 16GB GDDR6, Boost Clock 2040MHz, TGP 175W
Chipset
AMD SoC Platform
Memory
2x 16GB SO-DIMM DDR5-5200
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory

Up to 32GB DDR5-5200 offering
Storage
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®
Storage Support

Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 1TB
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers (super linear speaker), 2W x2, audio by HARMAN, optimized with Nahimic Audio, Smart Amplifier (AMP)
Camera
FHD 1080p with E-shutter
Microphone
2x, Array
Battery
Integrated 99.9Wh
Power Adapter
330W Slim Tip Tiny GaN (3-pin)
Special Features

Legion Coldfront 5.0 cooling system
AI Chip: LA2-Q

DESIGN
Display

16" WQXGA (2560x1600) IPS 500nits Anti-glare, 100% sRGB, 240Hz, DisplayHDR™ 400, Dolby® Vision™, FreeSync™, G-SYNC®, Low Blue Light, High Gaming Performance
Touchscreen
None
Color Calibration
Factory Color Calibration
Keyboard
Per-key RGB Backlit (with Lighting Lens), Slovenian
Touchpad
Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)
Case Color
Onyx Grey
Surface Treatment
Anodizing
Case Material
Aluminium (Top), Aluminium (Bottom)
Dimensions (WxDxH)

363.4 x 263.55 x 21.97-25.9 mm (14.31 x 10.38 x 0.86-1.02 inches)
Weight

Less than 2.8 kg (6.17 lbs)
SOFTWARE
Operating System
None
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M (RJ-45)
WLAN + Bluetooth

Wi-Fi® 6E, 11ax 2x2 + BT5.2
Standard Ports

1x USB 3.2 Gen 1 (Always On)
3x USB 3.2 Gen 1
1x USB-C® 3.2 Gen 2 (support data transfer and DisplayPort™ 1.4)
1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 140W and DisplayPort™ 1.4)
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector

Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
E-shutter
SERVICE
Base Warranty
2-year, Courier or Carry-in
Included Upgrade
None
ACCESSORIES
Bundled Accessories

4 Switchable Keycaps and Easy Tool
CERTIFICATIONS
Green Certifications

ErP Lot 3
RoHS compliant

Other Certifications

TÜV Rheinland® High Gaming Performance
TÜV Rheinland® Low Blue Light (Hardware Solution)
