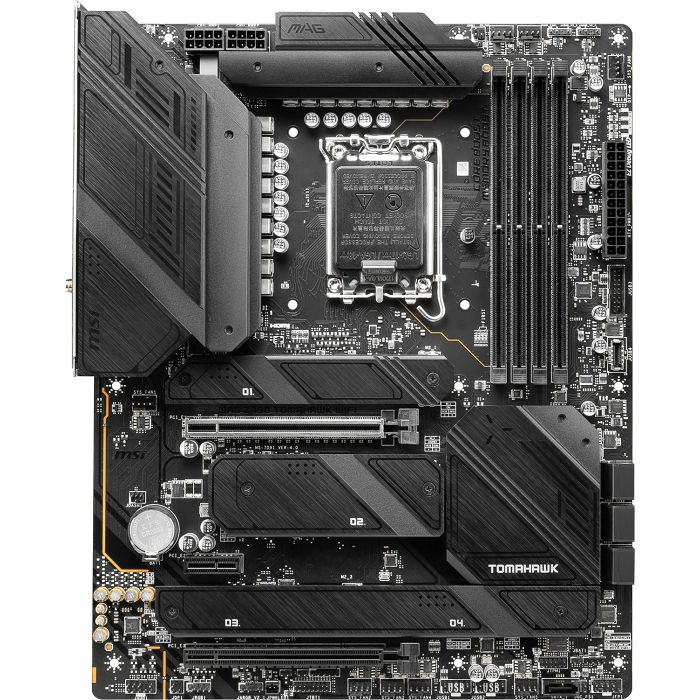

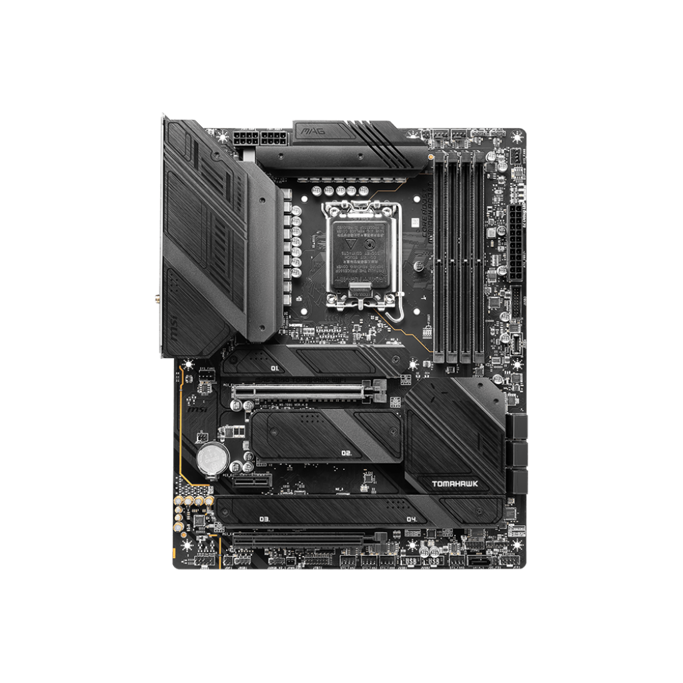

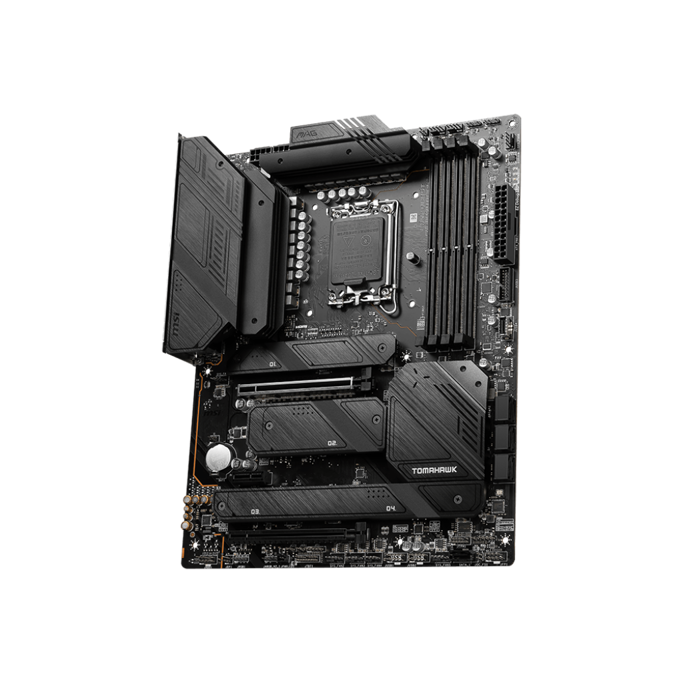

MSI MAG Z790 Tomahawk WiFi, DDR5, s1700, 7D91-009R

Shape factor ATX
Socket Intel 1700
chipset Intel Z790
CPU-Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-54400U/DDR5-6800 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)

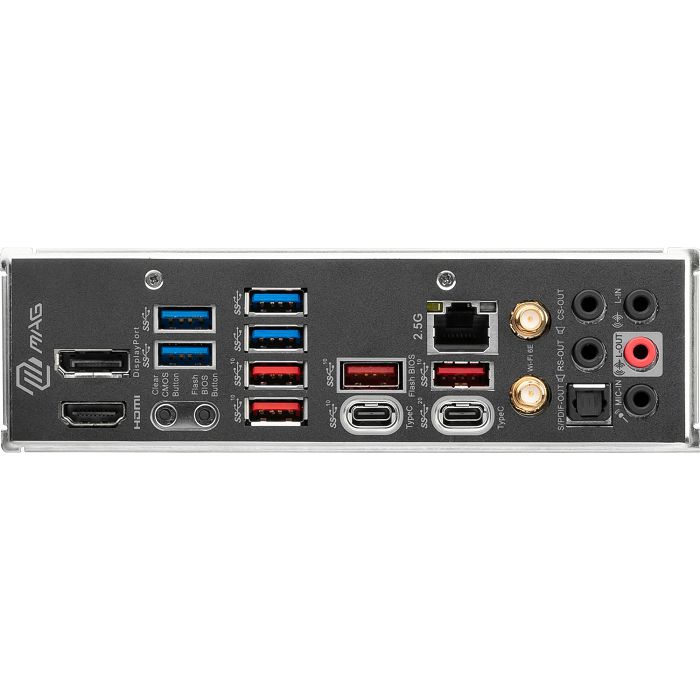

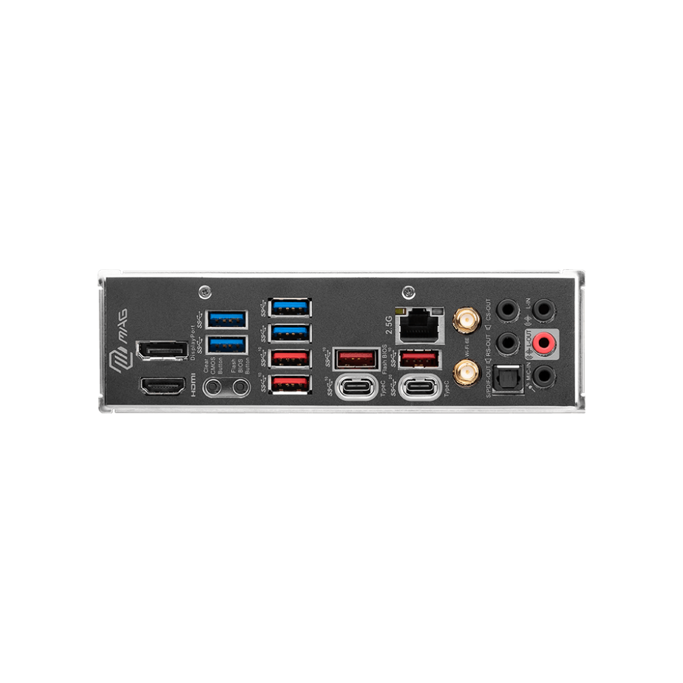

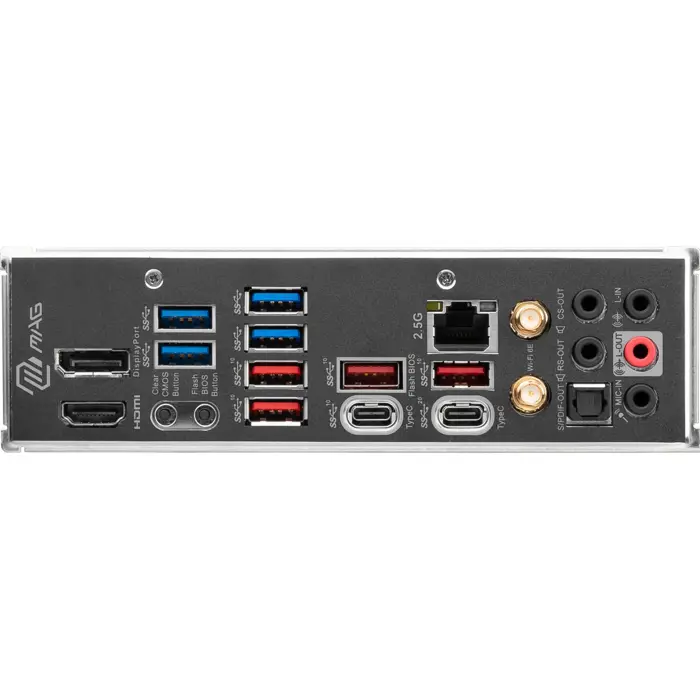

external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 4x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Intel I225-V), 5x jack, 1x toslink
Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 7x SATA 6Gb/s (Z790), 1x TPM-Header, 1x Thunderbolt-Header 15-Pin (16-1), 1x Chassis Intrusion-Header, 1x MSI Tuning controller Header 5-Pin
Header Cooling 1x CPU fan 4-Pin, 1x pump 4-Pin, 6x fan 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
buttons/Switches USB BIOS Flashback (external), clear-CMOS-Button (external)
Audio 7.1 (Realtek ALC4080)
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
RAID level 0/1/5/10 (Z790)
Power connections 1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM 17 virtual phases (16+1), 9 real phases (8+1), PWM-Controller: RAA229132 (max. 20 phases)
MOSFETs CPU 16x 90A ISL99390
MOSFETs SoC 1x 75A RAA220075
Lighting not available
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), 4x M.2-passive cooler, I/O-shield integrated, onboard TPM 2.0 support (Intel PTT)
