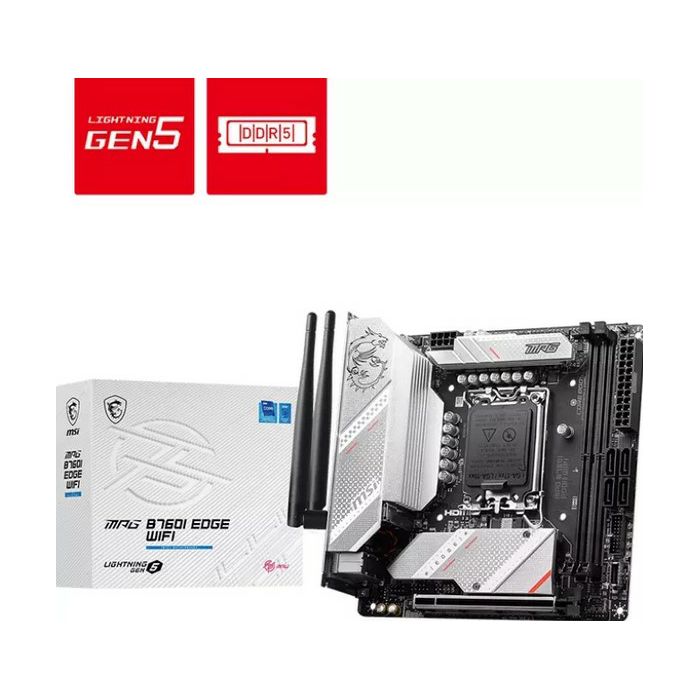

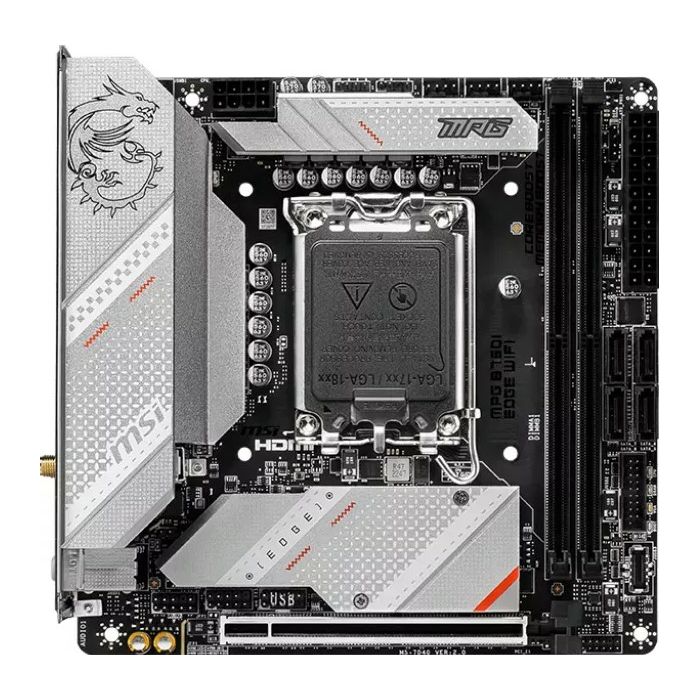

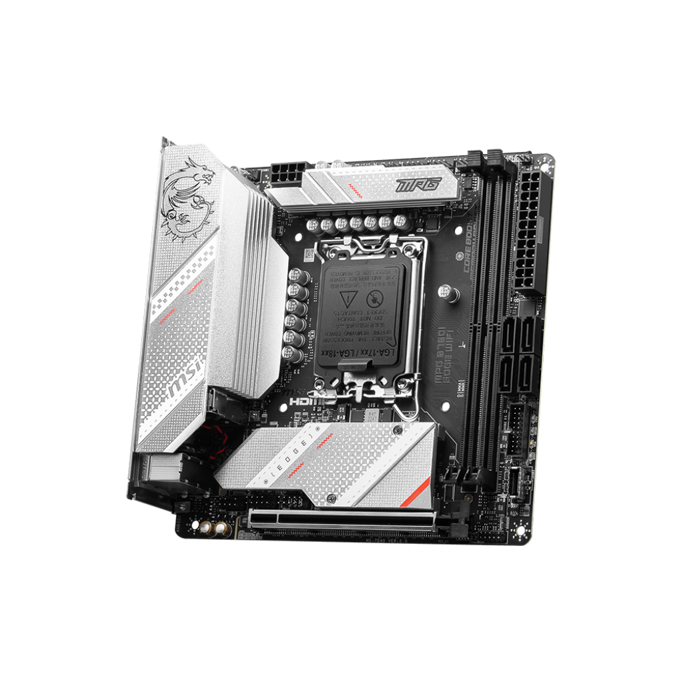

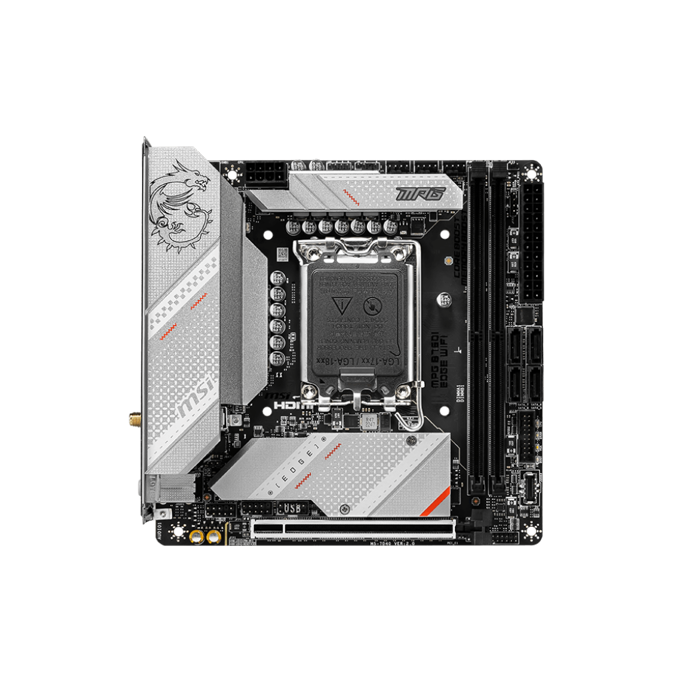

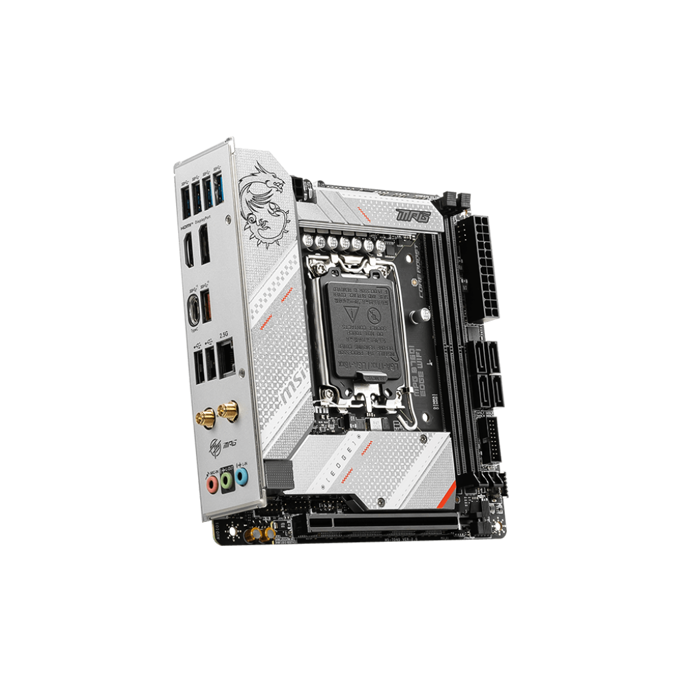

MSI MPG B760I Edge WIFI, DDR5, Mini-ITX, Intel B760, s.1700, 7D40-005R

Form factor Mini-ITX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 96GB (UDIMM)
Expansion slots 1x PCIe 5.0 x16, 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280, rear), 1x M.2/E-Key (PCIe, 2230, assigned with WiFi+BT module)

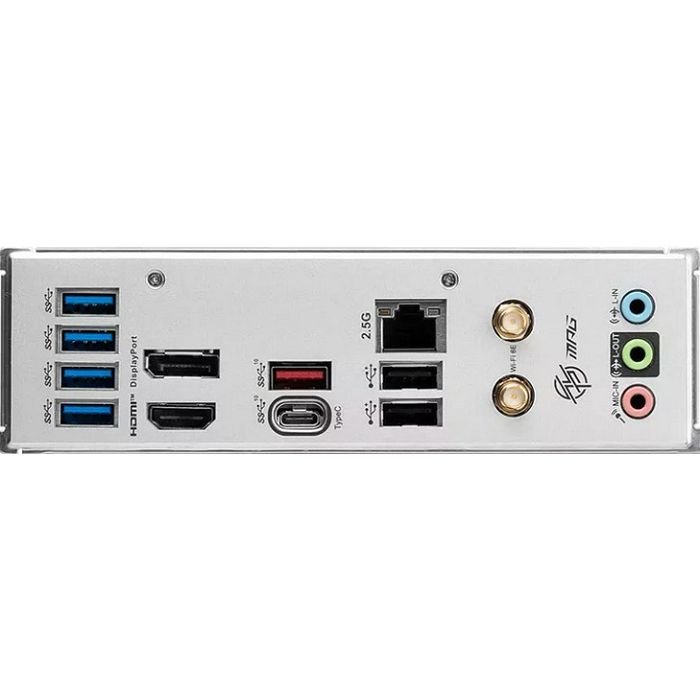

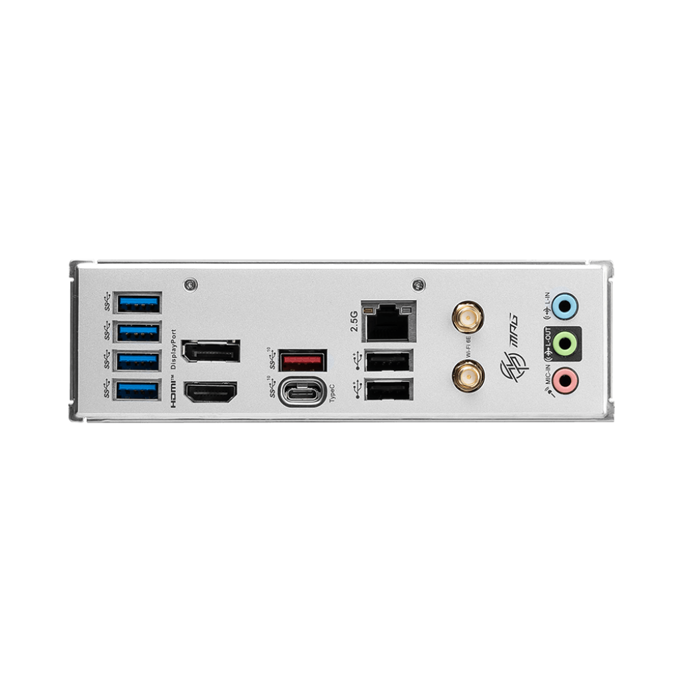

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 2x antenna connector (RP-SMA)
Internal connections 1x USB-C 3.1 Key-A header (10Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (B760), 1x TPM header, 1x chassis intrusion header
Header Cooling 1x CPU fan 4-pin, 1x fan 4-pin, 1x pump 4-pin
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 1x 3-pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless Wi-Fi 6E (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
RAID Level 0/1/5/10 (B760)
Multi-GPU N/A
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 9 virtual phases (8+1), 9 real phases (8+1), PWM controller: ISL69269 (max. 12 phases)
MOSFETs CPU 8x 90A ISL99390
MOSFETs SoC 1x 90A ISL99390
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, integrated I/O panel, Onboard TPM 2.0 support (Intel PTT)
