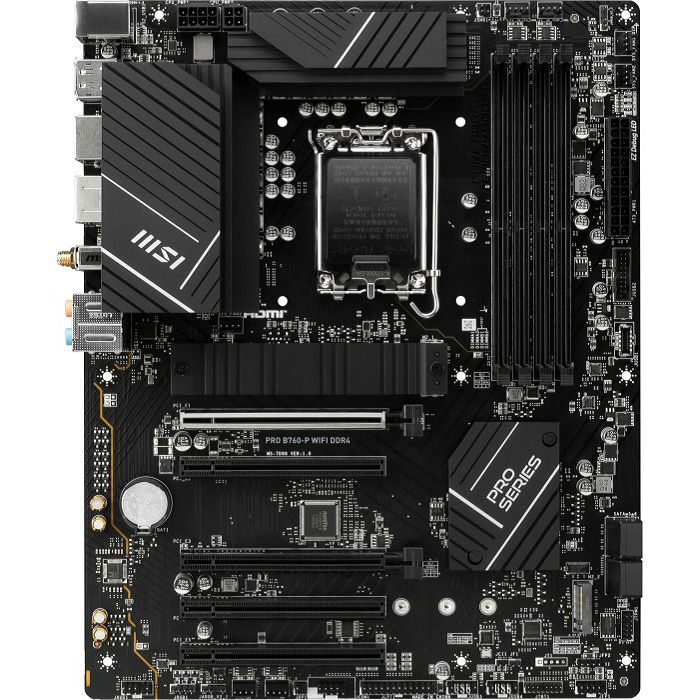

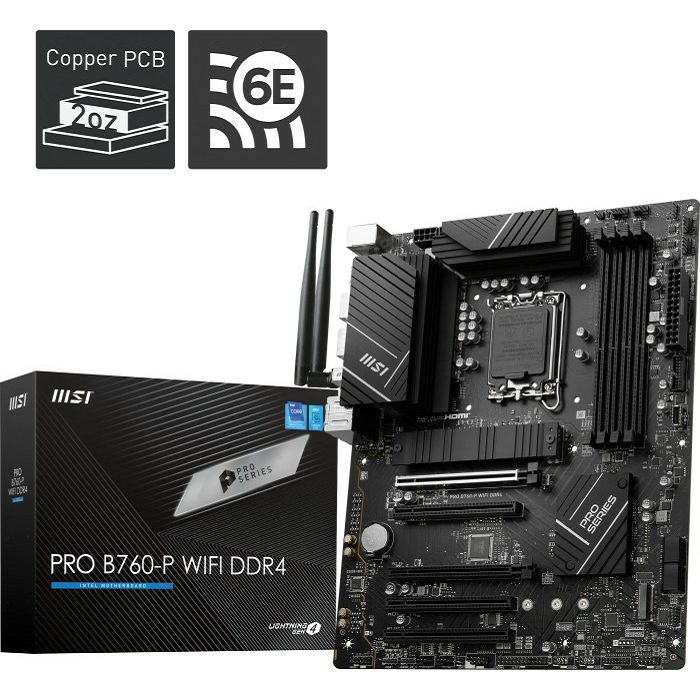

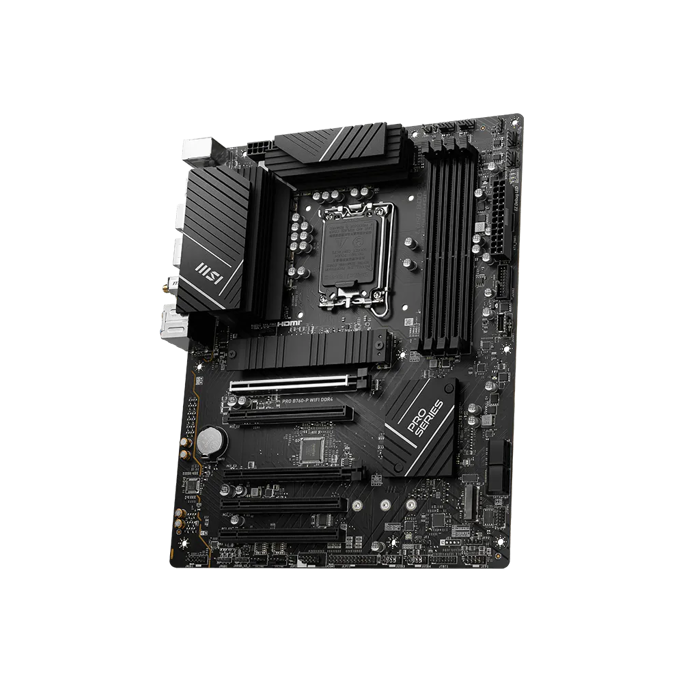

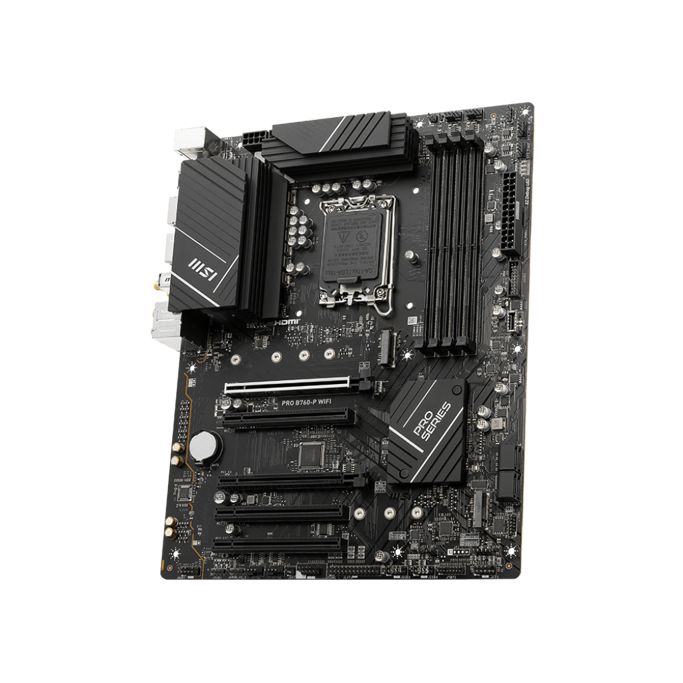

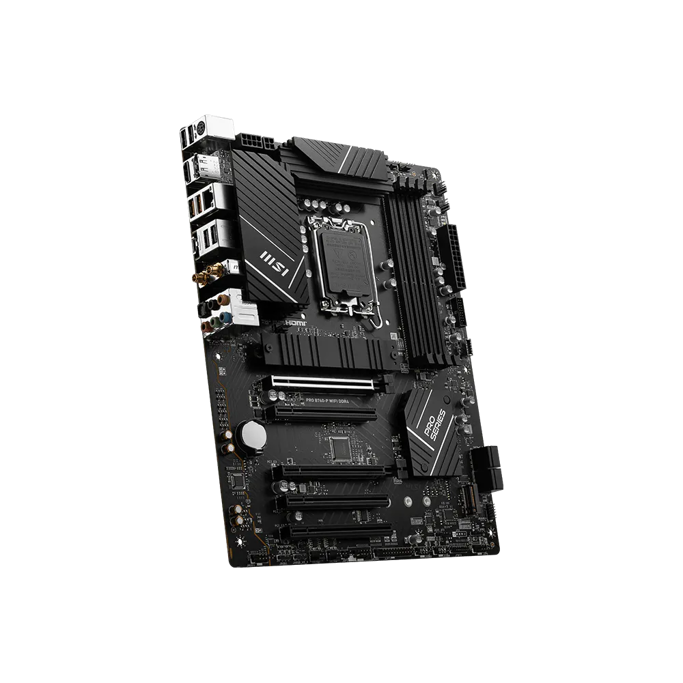

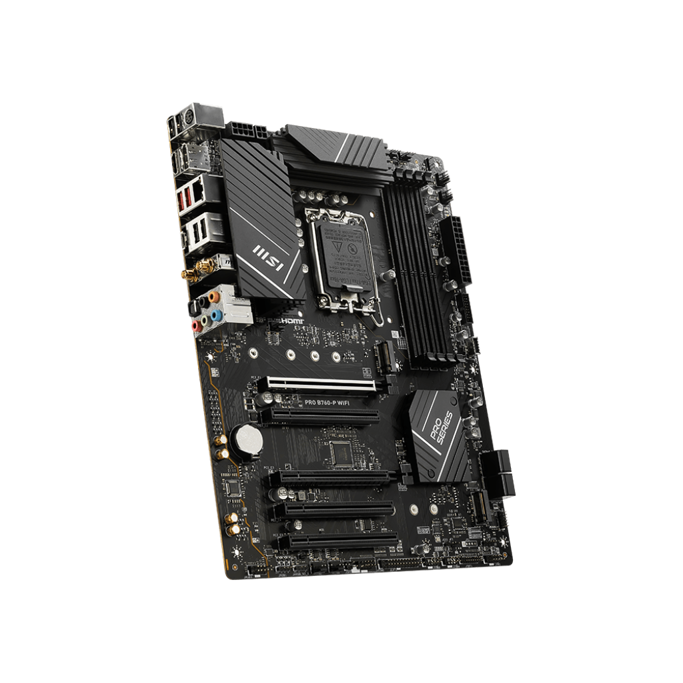

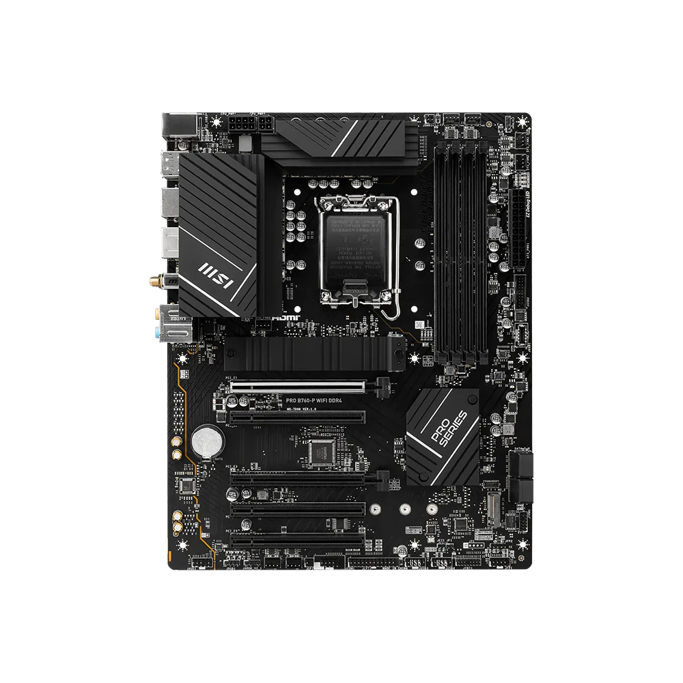

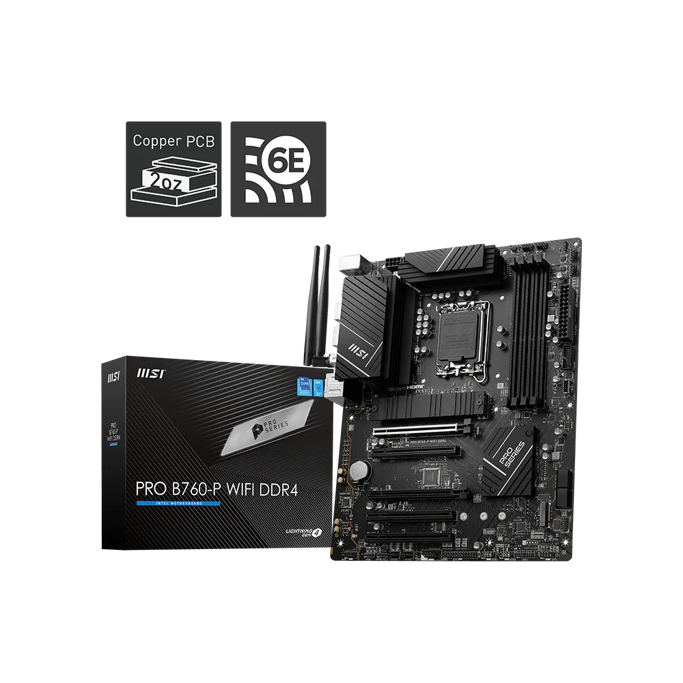

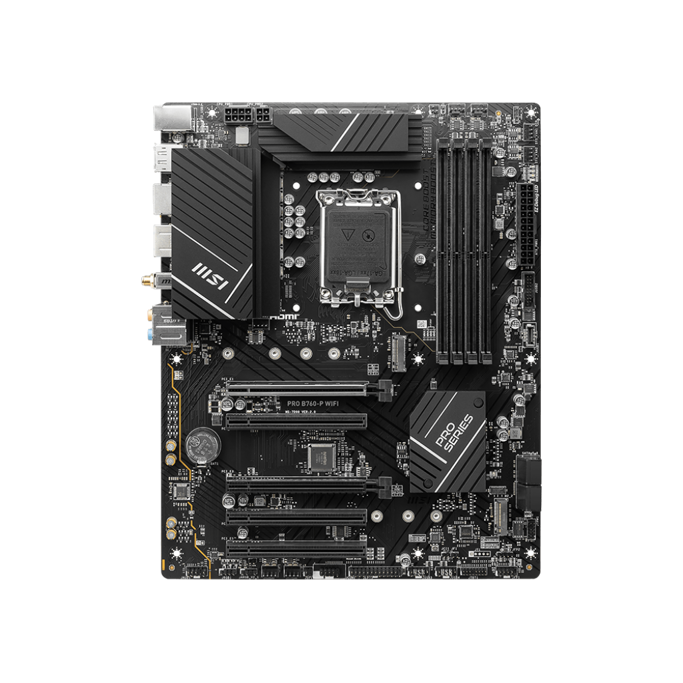

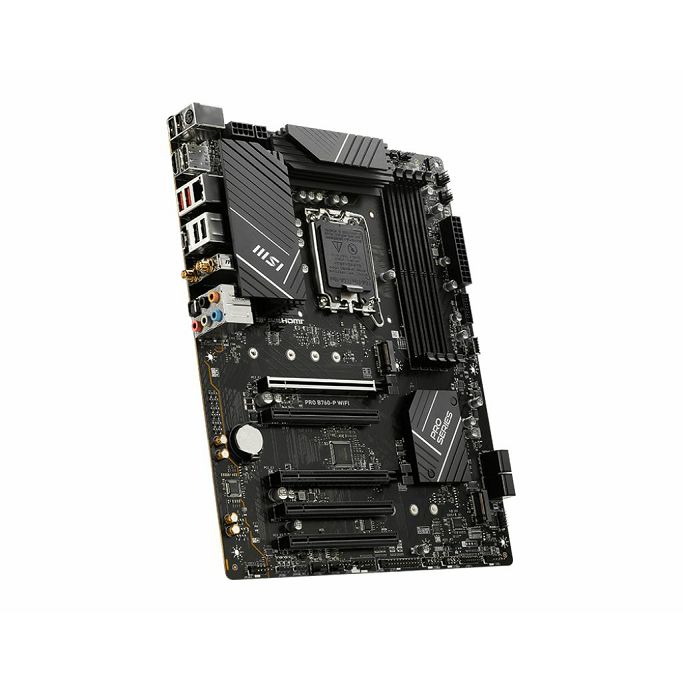

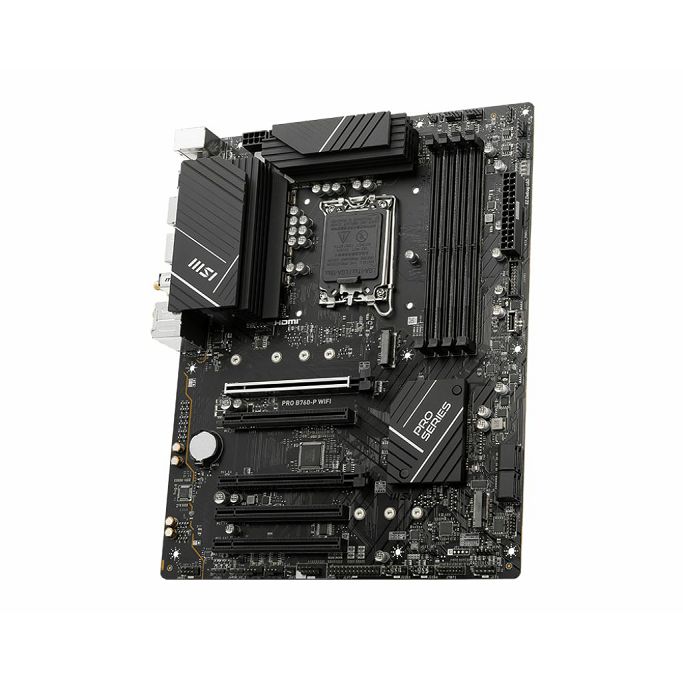

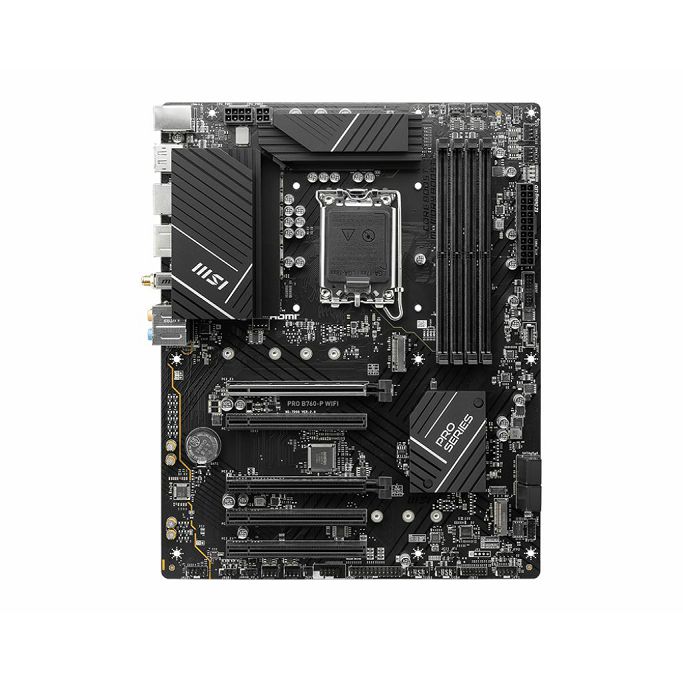

MSI PRO B760-P WiFi, DDR4, Intel B760, s.1700, 7D98-001R

Form factor
ATX
Plinth
Intel 1700
Chipset
Intel B760
CPU Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR4 DIMM, dual PC4-42666U/DDR4-5333 (OC), max 128GB (UDIMM)
Expansion slots
2x PCIe 4.0 x16 (1x x16, 1x x4), 3x PCIe 3.0 x16 (x1), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)

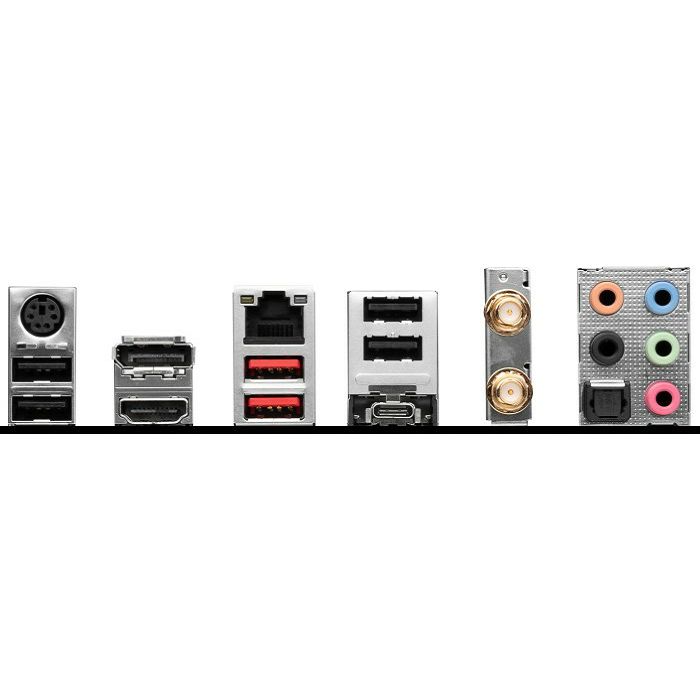

External connections

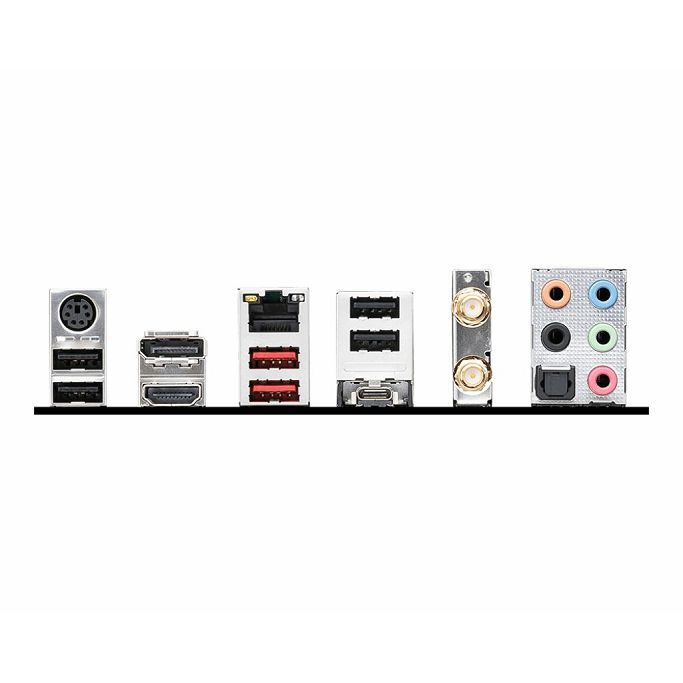

1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 2x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 5x jack, 1x Toslink, 1x PS/2 combo, 2x antenna connector (RP-SMA)
Internal connections
1x USB-C 3.0 Key-A header (5Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM header, 1x Thunderbolt header 15-pin (16-1), 1x chassis intrusion header
Header Cooling
1x CPU fan 4-pin, 5x fan 4-pin, 1x pump 4-pin
Header Lighting
1x 4-pin RGB (+12V/G/R/B, max. 3A), 2x 3-pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
Buttons/Switches
N/A
Audio
7.1 (Realtek ALC897)
Graphic
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3
RAID Levels
0/1/5/10 (B760)
Multi-GPU
N/A
Electrical connections
1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
VRM
13 virtual phases (12+1), 7 real phases (6+1), PWM controller: RT3628AE (max. 9 phases)
MOSFETs CPU
12x 53A AONS36308/AONS36303
MOSFETs SoC
2x 53A AONS36308/AONS36303
Lighting
N/A
BIOS
1x 32MB (256Mb)
Particularities
Audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, Onboard TPM 2.0 support (Intel PTT)
