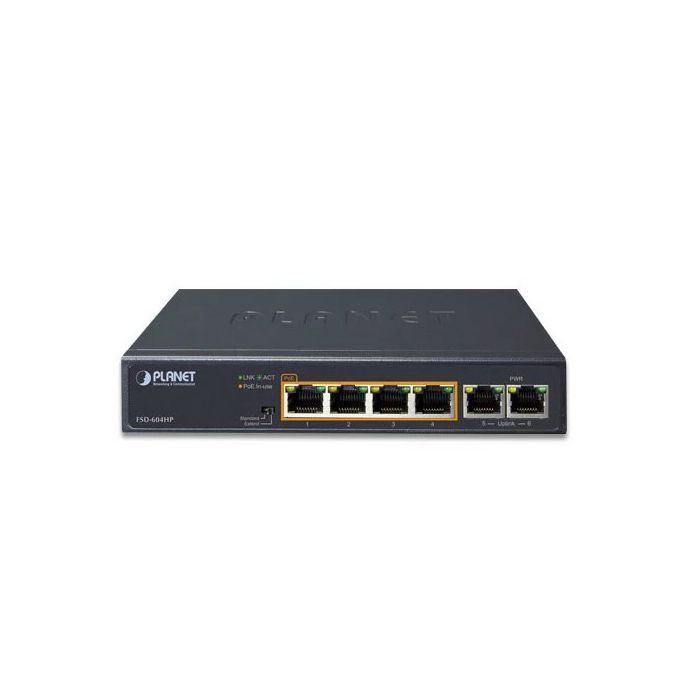

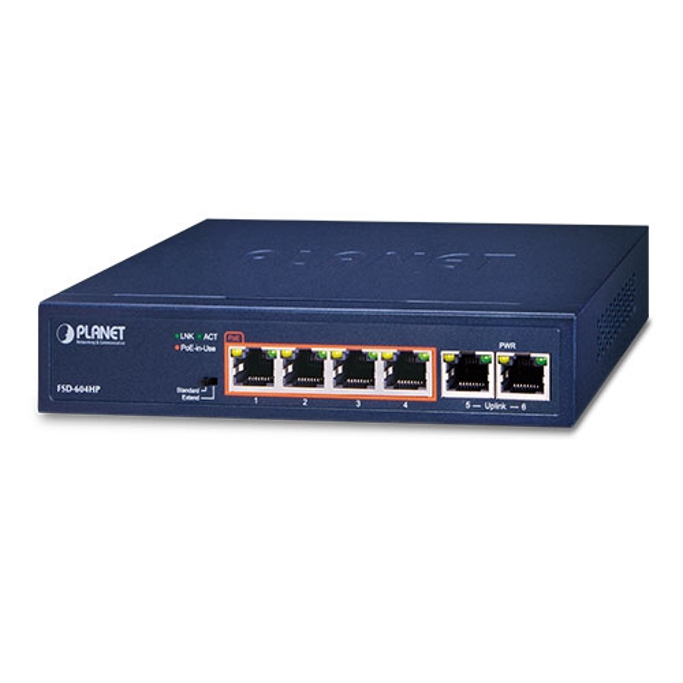

Planet FSD-604HP 4-Port 10/100TX 802.3af/at PoE + 2-Port 10/100TX Desktop Switch (60 Watts), PLT-FSD-604HP

Hardware Specifications
Network Connector 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
PoE Inject Port 4-port with 802.3af/at PoE injector function (Port-1 to Port-4)
LED Display System:
Power (Orange)

Per PoE port:
PoE (Orange, Port 1 to Port 4)
LNK/ACT (Green, Port 1 to Port 6)
DIP Switch 100m distance in standard mode
250m distance in extend mode (based on the cable category)
Switch Architecture Store and Forward switch architecture
MAC Address Table 2K MAC address table with auto learning function
Switch Fabric 1.2Gbps
Switch Throughput 0.89Mpps @64bytes
Maximum Packet Size 1536bytes
Flow Control Back pressure for half duplex. IEEE 802.3x pause frame for full duplex

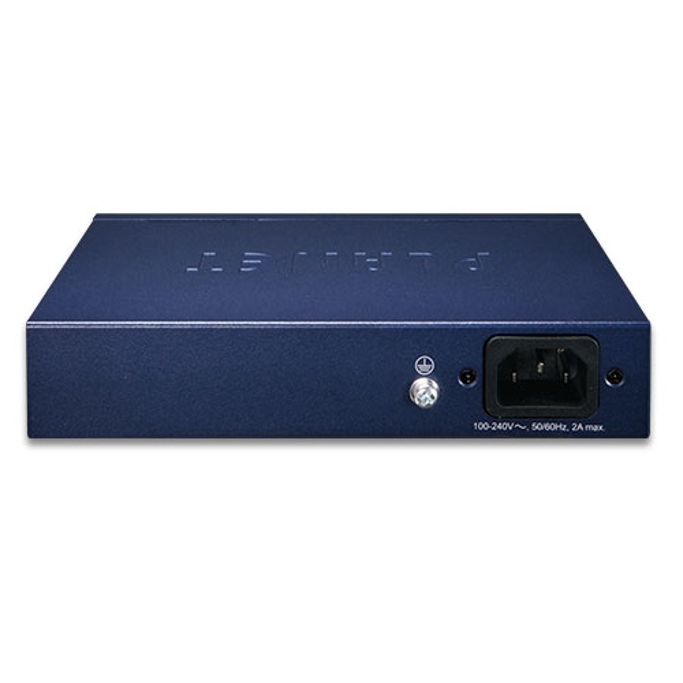

Power Requirements AC 100~240V, 2A max.
Power Consumption Max. 63 watts, 214 BTU
Dimensions (W x D x H) 168 x 93 x 32 mm
Weight 499g
ESD Protection Contact discharge of ±4KV DC
Air discharge of ±6KV DC
Surge Immunity ±4KV
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget 60 watts
Number of PDs, 7 watts 4
Number of PDs, 15.4 watts 4
Number of PDs, 30 watts 2
Standard Conformance
EMI Safety CE, FCC
Standard Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
