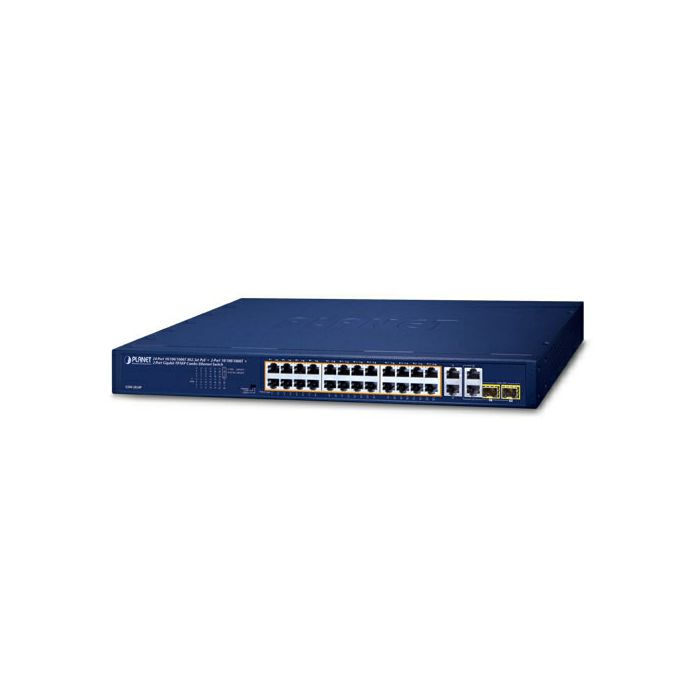

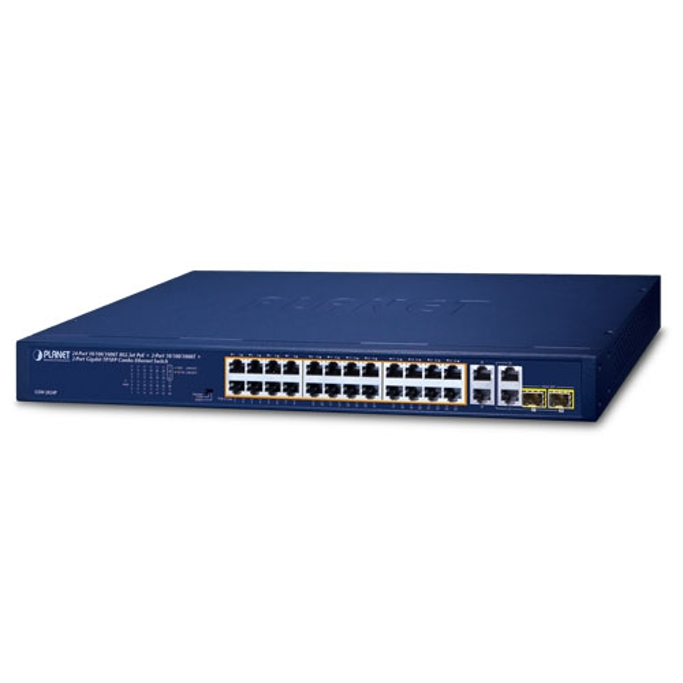

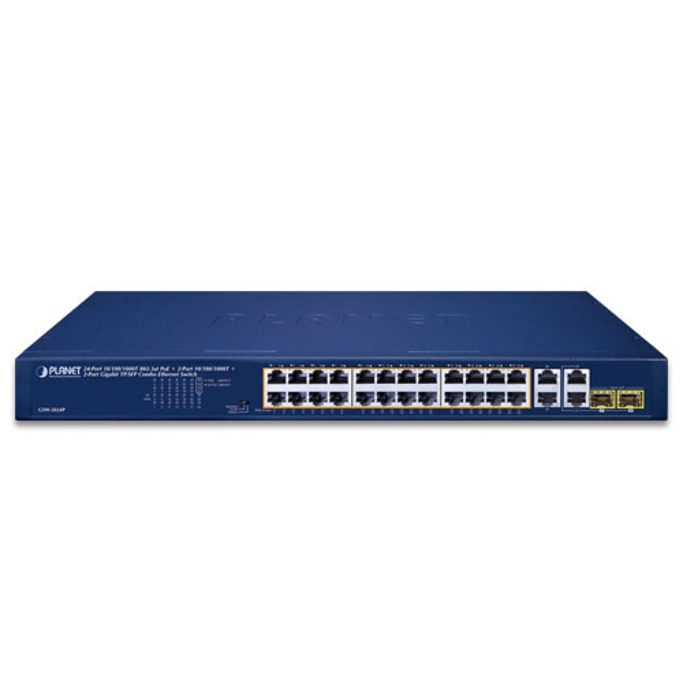

Planet Switch GSW-2824P 24-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port Gigabit TP/SFP Combo Ethernet Switch

Hardware Specifications
10/100/1000BASE-T Copper Ports 28 auto MDI/MDIX
1000BASE-X SFP/mini-GBIC Slots 2
DIP Switch Selectable operation mode
- Standard
- VLAN
- Extend
Dimensions (W x D x H) 441.5 x 207.3 x 44 mm (1U height)
Enclosure Metal
Weight 3022g

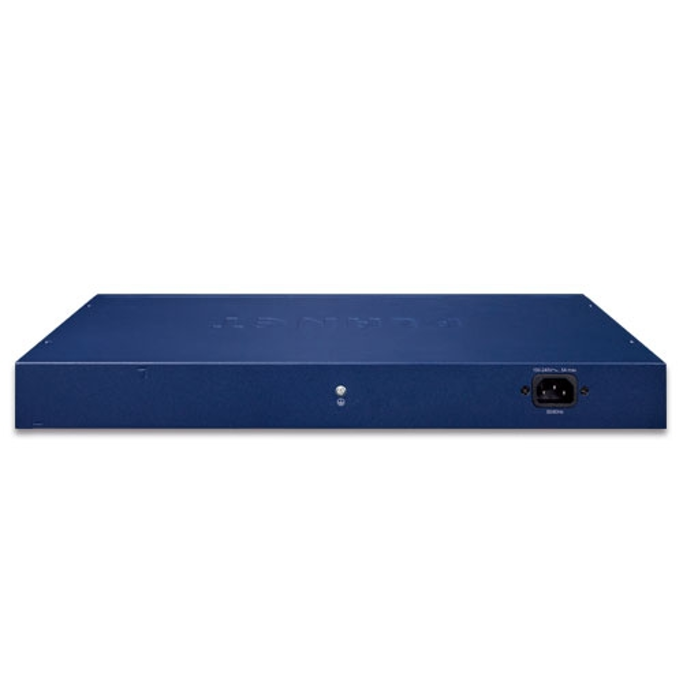

Power Requirements 100~240V AC, 50/60Hz, 5A max.
Power Consumption/Dissipation Max. 278 watts/948 BTU
Thermal Fan 2
ESD Protection Contact discharge of ±6KV DC,
Air discharge of ±8KV DC
Surge Protection ±6KV
Installation Desktop or rack-mount installation
LED Indicators System
Power (Green)
10/100/1000T RJ45 Interfaces
10/100 LNK / ACT(Amber)
1000 LNK / ACT (Green)
PoE-in-Use(Amber)
1000X SFP Interfaces
1000 LNK / ACT (Green)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 56Gbps
Switch Throughput@64bytes 41.66Mpps
MAC Address Table 8K entries
Jumbo Frame 9216 bytes
Flow Control IEEE 802.3x pause frame for full duplex; back pressure for half duplex
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Injector Ports 24
PoE Power Supply Type End-span: 1/2 (+), 3/6 (-)
PoE Power Output Per port 54±1V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54±1V DC, 600mA. max. 32 watts (IEEE 802.3at)
PoE Power Budget 250 watts
Number of PDs, 7 watts 24
Number of PDs, 15.4 watts 16
Number of PDs, 30 watts 8
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet
