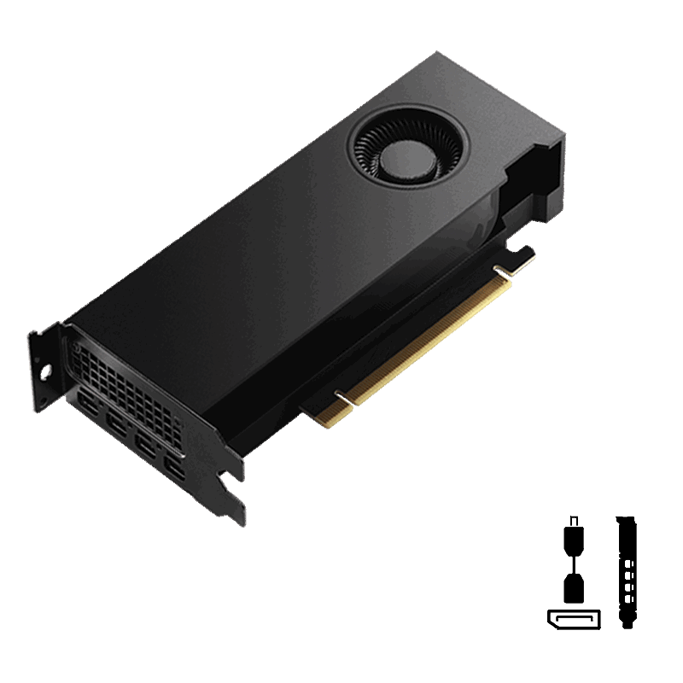

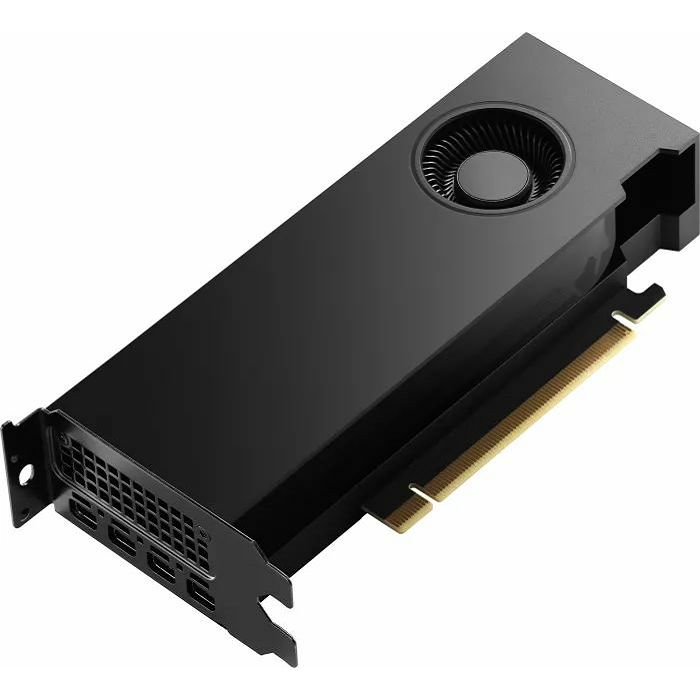

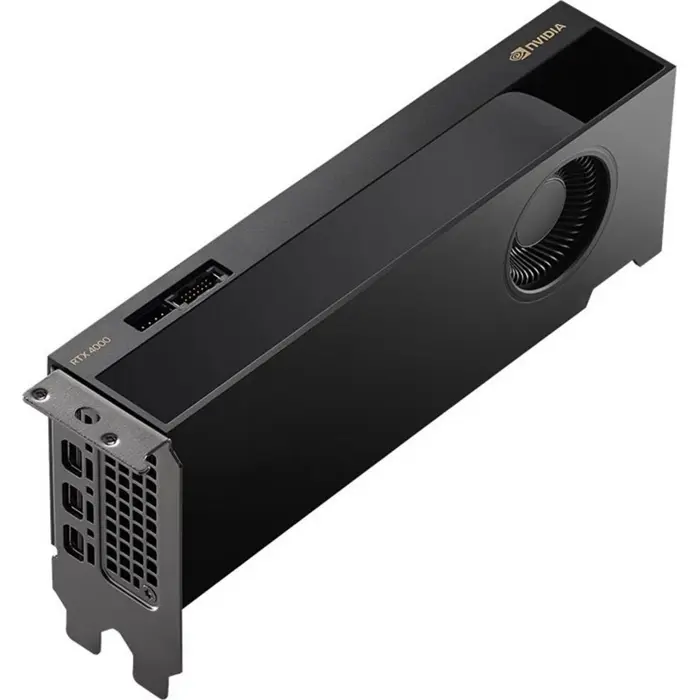

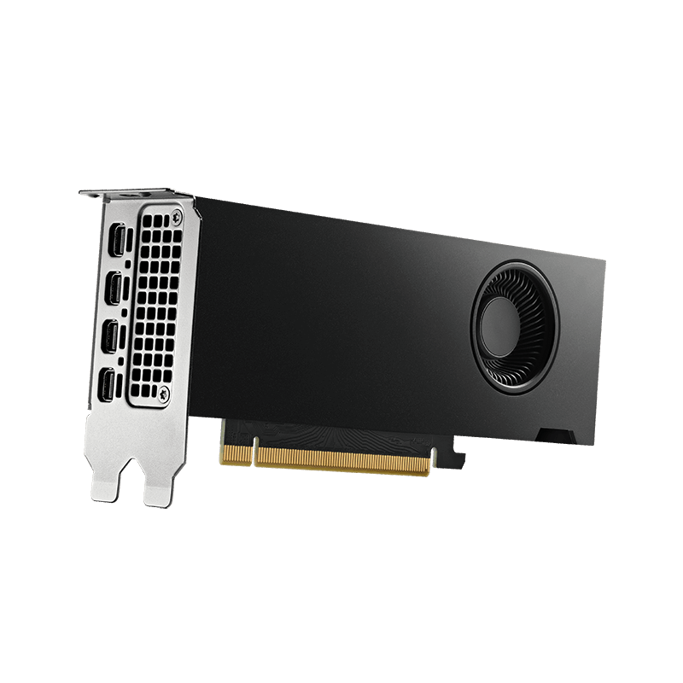

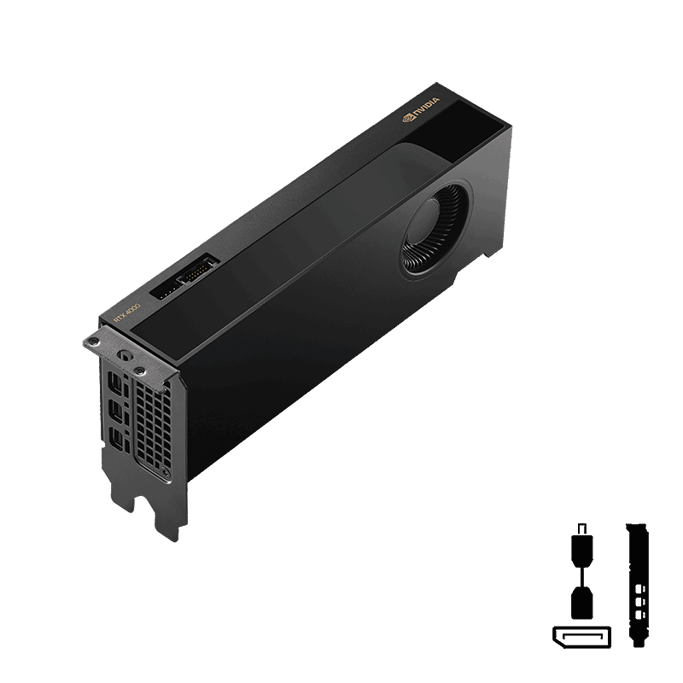

PNY RTX 4000 SFF ADA gen., 20GB GDDR6 ECC, PCIe 4.0 x16, 4x DP 1.4a, VCNRTX4000ADALP-SB

GPU NVIDIA RTX 4000 SFF Ada Generation
Memory 20GB GDDR6 with ECC mode, 160bit, 14Gbps, 1750MHz, 280GB/s
Clock Base 720MHz
Clock Boost 1560MHz
Overclocking -
Cooling 1x Radial Fan (40mm)
TDP/TGP 70W (NVIDIA)
Power connections -
Connections 4x Mini DisplayPort 1.4a
Connection PCIe 4.0 x16
Particularities NVIDIA Reference Design
Overall depth Dual Slot
Dimensions 167.64x68.58mm (LxW)
Construction PCIe card (low profile)
Slot bezel low profile + full height (scope of delivery)
Computing power 19.17 TFLOPS (FP16), 19.17 TFLOPS (FP32), 0.3 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD104
Chip Configuration 48SM (6144SP / 192TMU / 80ROP), 48 RT Cores, 192 Tensor Cores, 48MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 295mm2, monolithic, 35.8 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), 10bit Color Channel Depth, HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 2x NVENC (8th Gen, max. sessions: unrestricted), 2x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
Multi-GPU connectivity -
Introduction (Series) 21.03.2023, RRP: 1250 USD (NVIDIA)
Graphic NVIDIA RTX 4000 SFF Ada Generation - 20GB GDDR6 - Desktop
