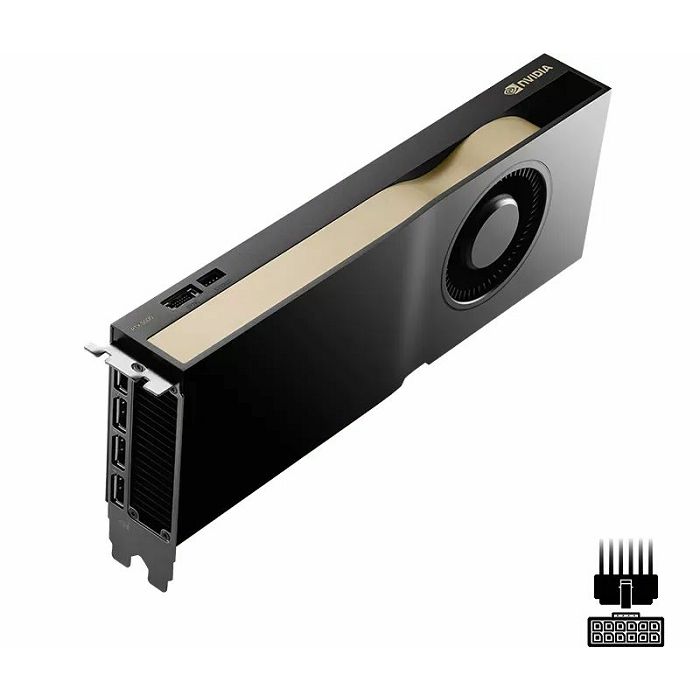

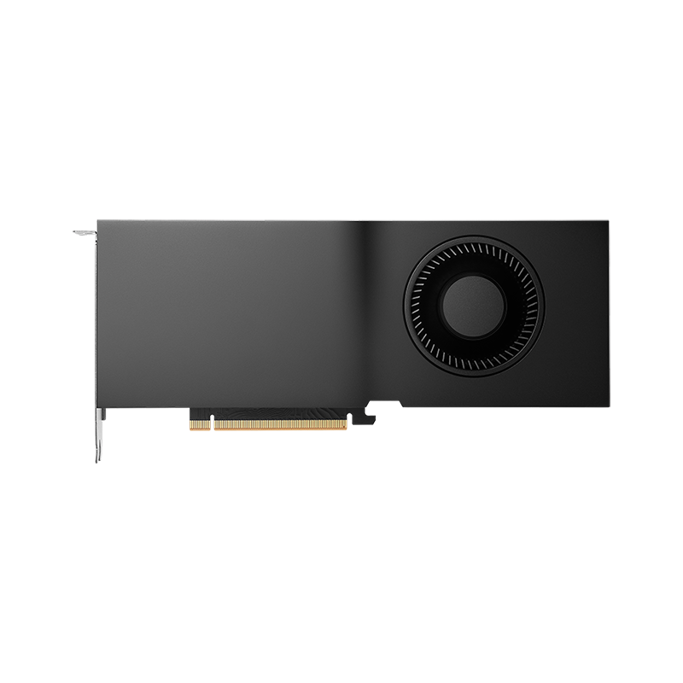

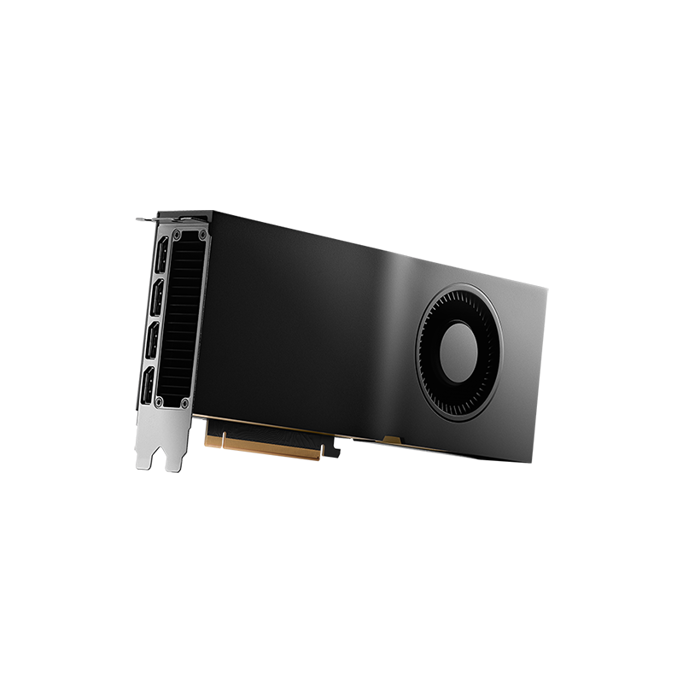

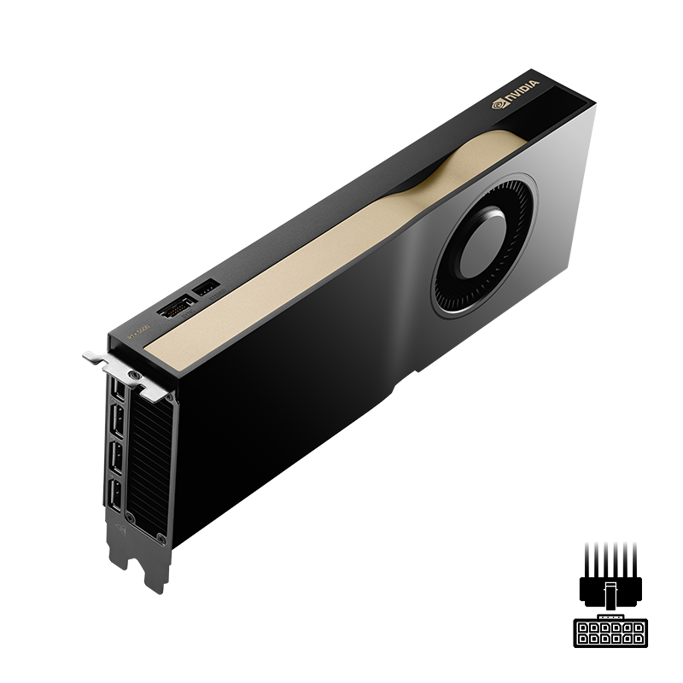

PNY RTX 5000 ADA gen., 32GB GDDR6 ECC, PCIe 4.0 x16, 4x DP 1.4a, VCNRTX5000ADA-SB, RVCNRTX5000ADA-SB

GPU NVIDIA RTX 5000 Ada Generation
Memory 32GB GDDR6 with ECC mode, 256bit, 18Gbps, 2250MHz, 576GB/s
Clock Base 1155MHz
Clock Boost 2550MHz
Overclocking -
Cooling 1x Radial Fan (65mm)
TDP/TGP 300W (NVIDIA)
Power connections 1x 16-pin PCIe 5.0

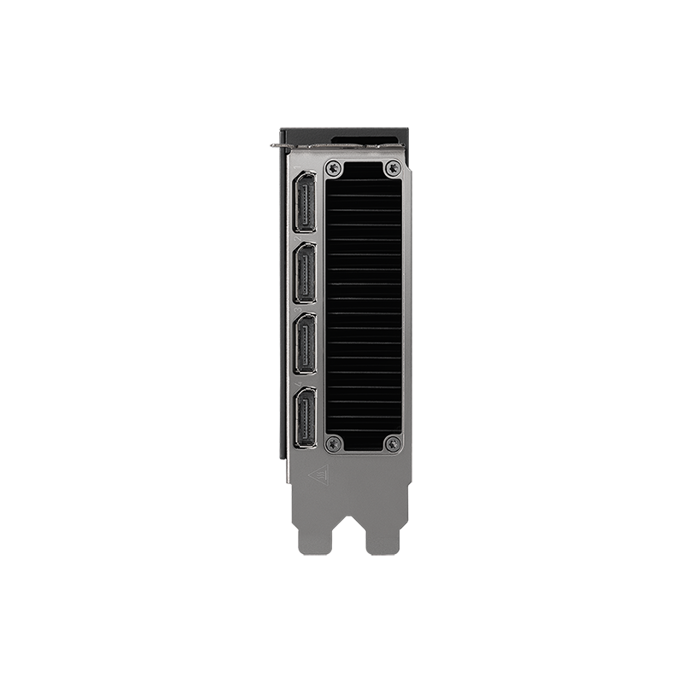

Connections 4x DisplayPort 1.4a
Connection PCIe 4.0 x16
Particularities NVIDIA Reference Design, Backplate
Overall depth Dual Slot
Dimensions 266.7x111.76mm (LxW), Weight: 1.08kg
Construction PCIe card (full height)
Slot bezel full height
Computing power 65.28 TFLOPS (FP16), 65.28 TFLOPS (FP32), 1.02 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD102
Chip Configuration 100SM (12800SP / 400TMU / 192ROP), 100 RT Cores, 400 Tensor Cores, 72MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 608mm2, monolithic, 76.3 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), 10bit Color Channel Depth, HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 3x NVENC (8th Gen, max. sessions: unrestricted), 3x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
