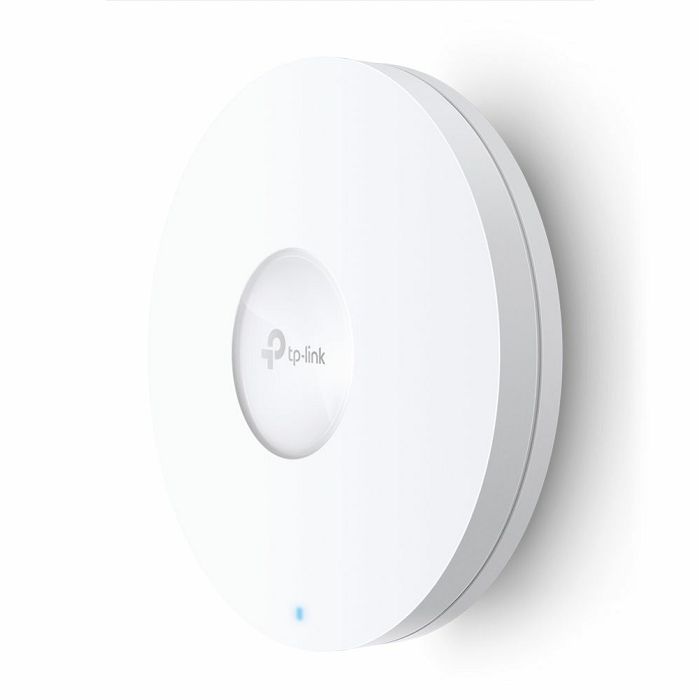

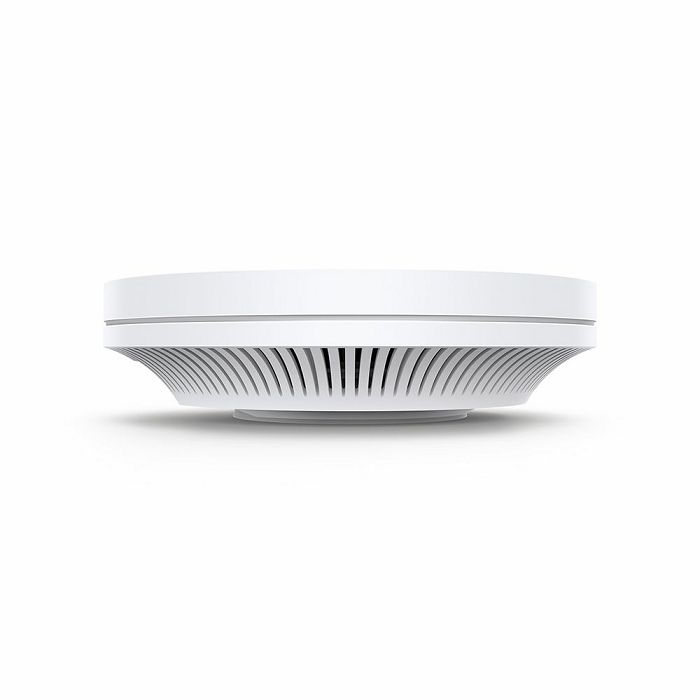

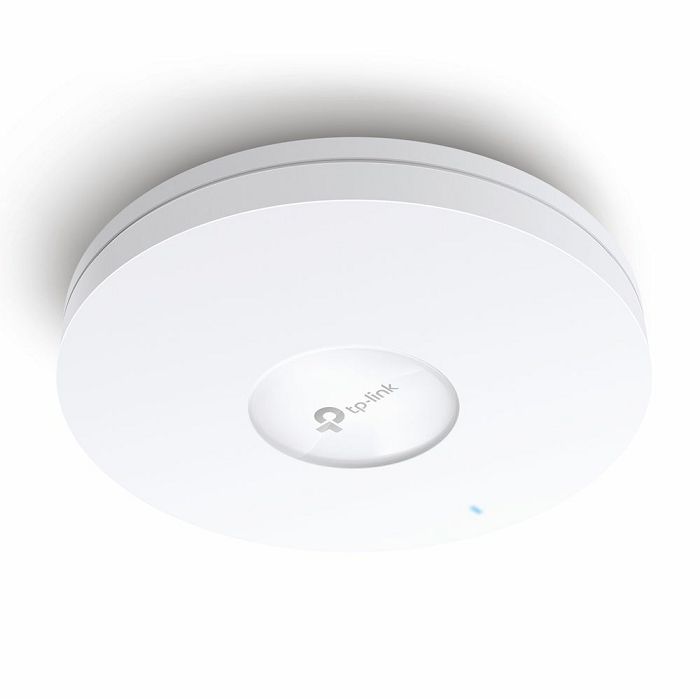

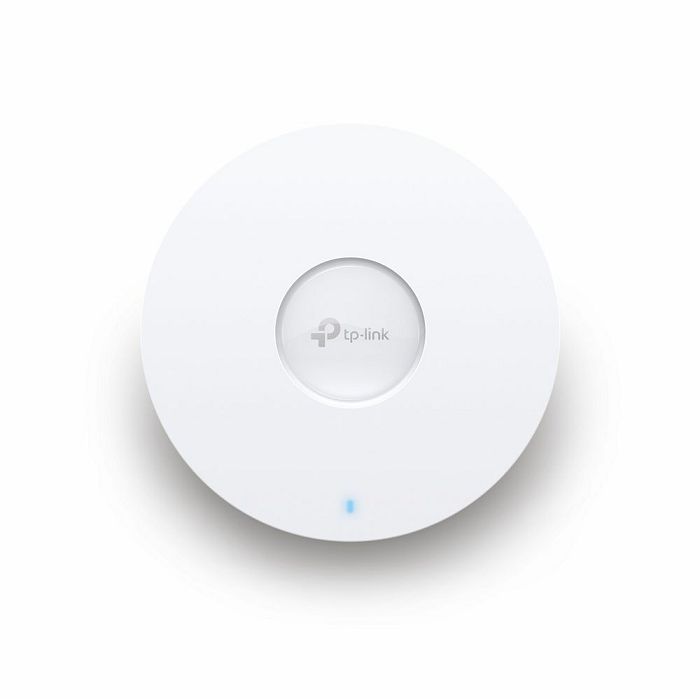

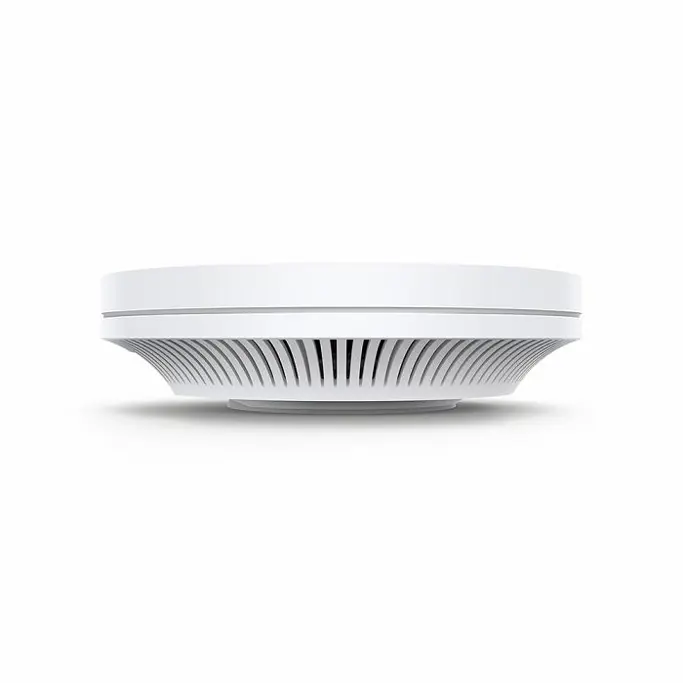

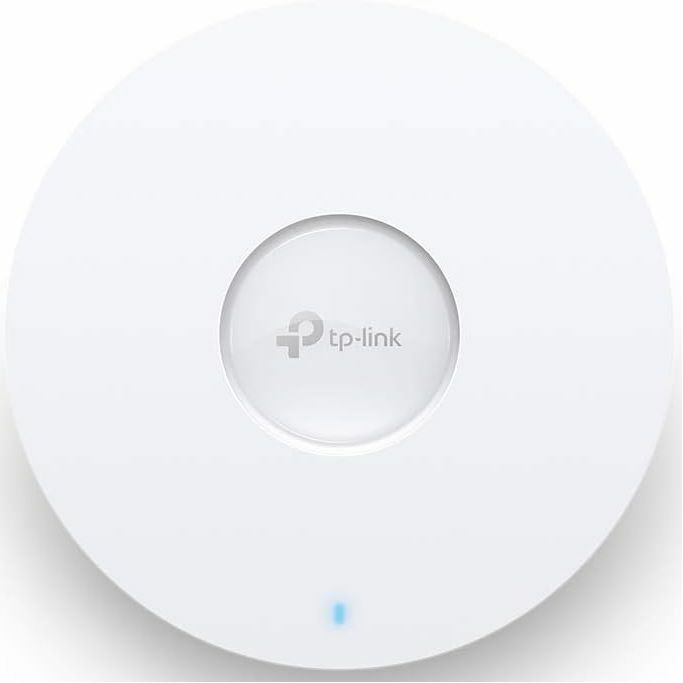

TP-Link Access Point EAP660 HD, AX3600 Wireless Ceiling Mount Access Point, Dual-Band Wi-Fi 6

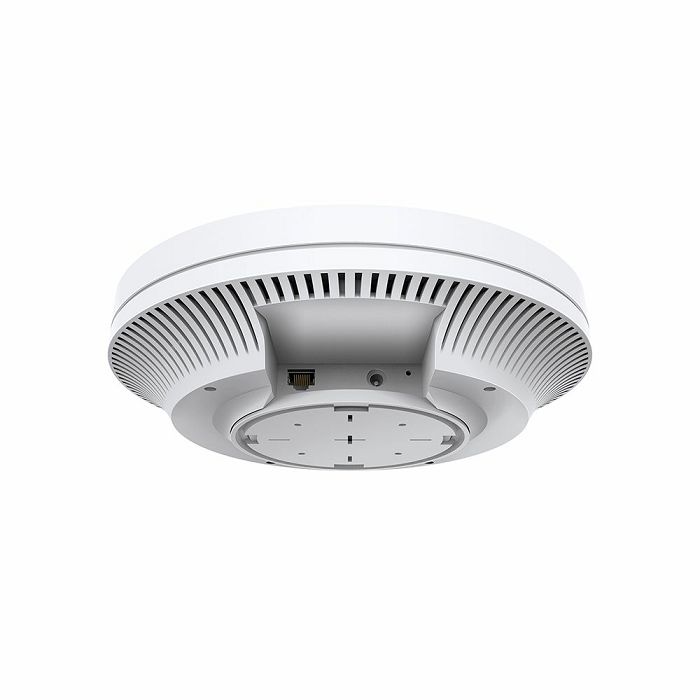

Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Power Supply
• 802.3at PoE
• 12 V DC
Power Consumption
• EU: 18.5 W
• US: 21.5 W

Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps

Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming?
• Omada Mesh?
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security
• Captive Portal Authentication?
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, FCC, RoHS
Package Contents
• EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
